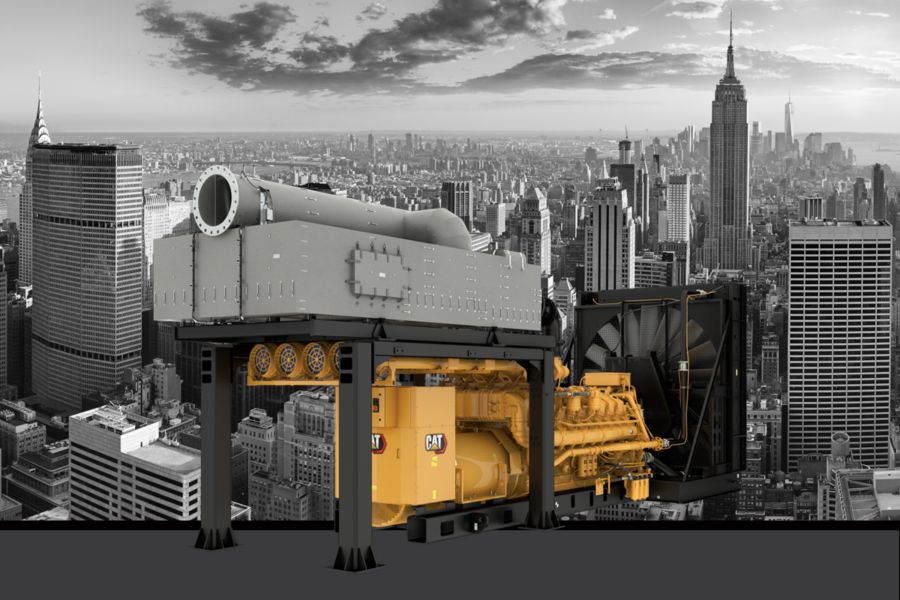

C175-16 Tier 4 Final (60 Hz)

Cat

Producing reliable power from 2500 - 3000 ekW (3100 ekW without fan) in 60 Hz, our C175-16 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. The generator set is U.S. EPA Certified for Non-Emergency Stationary certified.

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Standby Rating
Prime Power Rating
Emissions/Fuel Strategy
Voltage
Frequency
Speed
Duty Cycle
Maximum Rating
Minimum Rating
Engine Model
Bore	6.89	in
Stroke	8.66	in
Displacement	5155.88	in³
Compression Ratio
Aspiration
Fuel System
Governor Type
Length - Minimum	242.77	in
Length - Maximum	320	in
Width - Minimum	82.7	in
Width - Maximum	122.8	in
Height - Minimum	127.2	in
Height - Maximum	142.3	in
Dry Weight - Genset (minimum)	42750	lb
Dry Weight - Genset (maximum)	45114	lb

Standard Equipment

Control Panel
Cooling System
Exhaust System
Fuel System
Generator and Attachments
Governing System
Lube System
Mounting System
Service Instructions
General
Air Inlet System

Optional Equipment

Air Inlet System
Control Panels
Cooling System
Exhaust
Fuel System
General
Generator and Attachments
Instrumentation
Lube System
Crankcase Systems
Mounting System
Power Connections
Service Tools - Barring Groups
Special Tests / Reports
Starting/Charging
