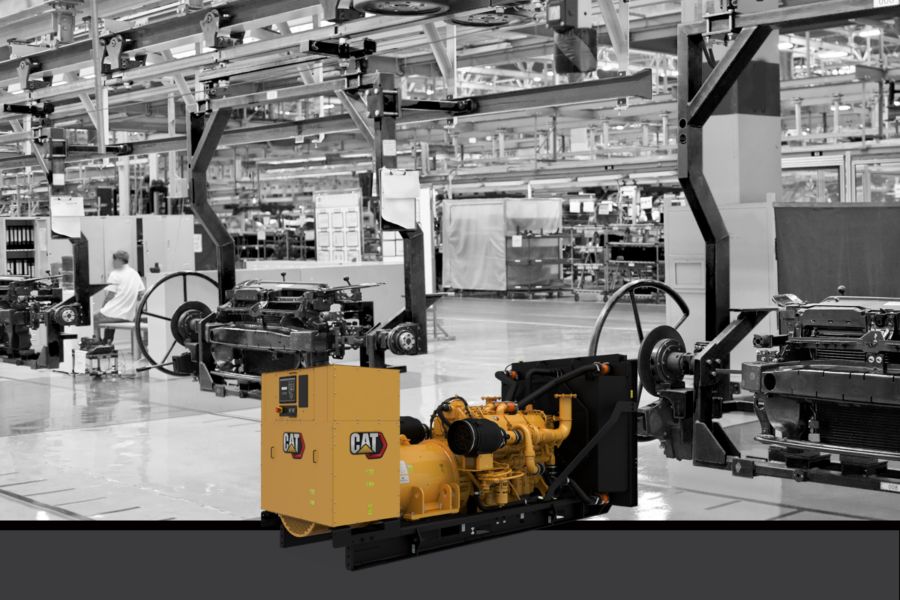

C32B (60 Hz)

Cat

Producing reliable power from 830 to 1250 ekW at 60 Hz, our C32B diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% block load. Generator sets range from low fuel consumption systems to EPA Stationary Emergency (Tier 2) certification.

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Standby Rating
Prime Power Rating
Emissions/Fuel Strategy
Voltage
Frequency
Speed
Duty Cycle
Engine Model
Bore	5.71	in
Stroke	6.38	in
Displacement	1958.86	in³
Compression Ratio
Aspiration
Fuel System
Governor Type
Length - Minimum	164	in
Length - Maximum	172.7	in
Width - Minimum	66.3	in
Width - Maximum	87.7	in
Height - Minimum	85.1	in
Height - Maximum	86.4	in
Dry Weight - Genset (minimum)	14700	lb
Dry Weight - Genset (maximum)	16755	lb

Standard Equipment

Air Inlet System
Control Panel
Cooling System
Exhaust System
Fuel System
General
Generators and Attachments
Governing System
Lube System
Mounting System
Power Termination
Starting and Charging

Optional Equipment

Air Inlet System
Circuit breakers
Control Panel
Cooling System
Enclosures
Exhaust System
General
Generator and Attachments
Lube System
Mounting System
Power Connections
Power Termination
Special Tests / Reports
Starting / Charging
