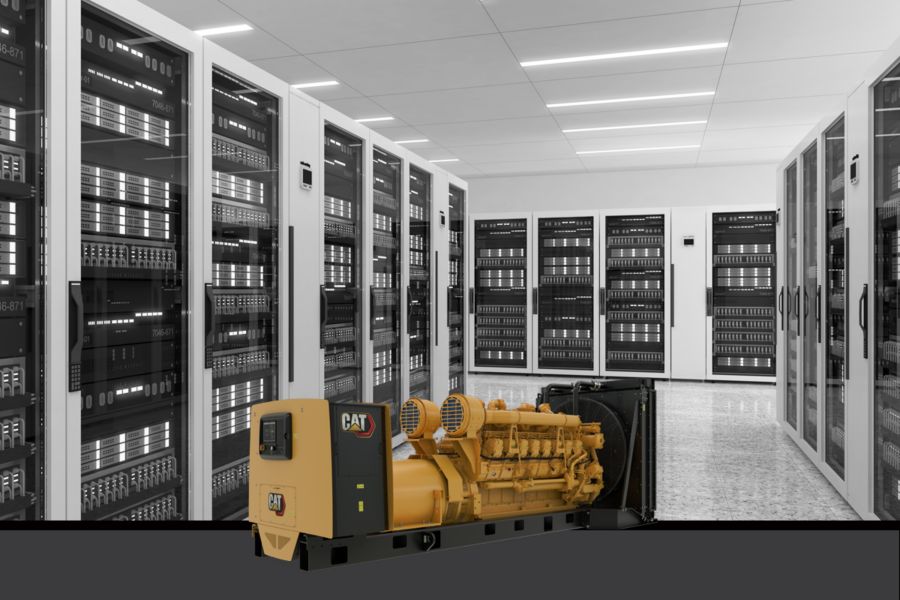

Cat® 3516B (60 Hz) with Upgradeable Package

Cat

Producing reliable power from 1640 to 2250 ekW at 60 Hz, our 3516B diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. Generator sets offer both low fuel consumption and low emission systems.

The3516B with the upgradeable packaging design has been developed for a wide range of applications, from emergency standby installations such as healthcare and datacenters to continuously powering remote installations. The packages can be optimized for performance to matters to you with either low emissions or low fuel consumption versions available. Backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty, Cat generator sets will provide the reliability and durability you expect.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Standby Rating
Prime Power Rating
Emissions/Fuel Strategy
Voltage
Frequency
Speed
Duty Cycle
Maximum Rating
Minimum Rating
Engine Model
Bore	6.69	in
Stroke	7.48	in
Displacement	4210.64	in
Compression Ratio
Aspiration
Fuel System
Governor Type
Length - Maximum	234.5	in
Width - Maximum	90	in
Height - Maximum	98.2	in
Dry Weight - Genset (maximum)	30310	lb

Standard Equipment

Air Cleaner
Starting
Cooling
Crankcase Ventilation System
Mounting System
Controller
Telematics
Alternator
Power Termination

Optional Equipment

Air Cleaner
Starting
Cooling
Crankcase Ventilation System
Muffler
Mounting System
Controller
Controller attachments
Telematics
Extended service terms
Extended service coverage
Alternator
Alternator Temperature rise (over 40°C ambient)
Alternator Output Voltage
Alternator attachments
Circuit breaker
Trip Unit
Ancilliary Equipment
