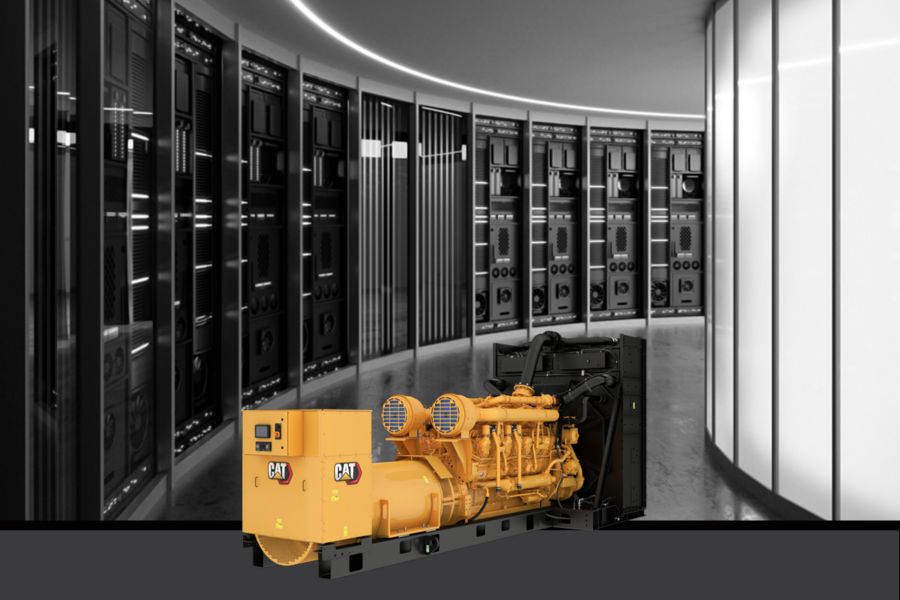

Cat® 3516E (60 Hz)

Cat

The 3516E diesel generator sets have been developed to meet your Standby and Prime applications and match your power standards. Producing reliable power from 2500 to 2750 ekW at 60 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and to accept 100 % rated load in one step. The generator set is US EPA Stationary Emergency Use Only (Tier 2) certified.

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Standby Rating
Prime Power Rating
Emissions/Fuel Strategy
Voltage
Frequency
Speed
Duty Cycle
Maximum Rating
Minimum Rating
Engine Model
Bore	6.69	in
Stroke	8.47	in
Displacement	4765	in³
Compression Ratio
Aspiration
Fuel System
Governor Type
Length - Maximum	276.1	in
Width - Maximum	100.7	in
Height - Maximum	124.5	in
Dry Weight - Genset (maximum)	40750	lb

Standard Equipment

Air Cleaner
Starting
Cooling
Crankcase Ventilation System
Mounting System
Controller
Telematics
Alternator
Power Termination

Optional Equipment

Air Cleaner
Starting
Cooling
Crankcase Ventilation System
Muffler
Mounting System
Controller
Controller attachments
Telematics
Extended service terms
Extended service coverage
Alternator Temperature rise (over 40°C ambient)
Alternator Output Voltage
Alternator attachments
Circuit breaker
Trip Unit
Ancilliary Equipment
Certifications
