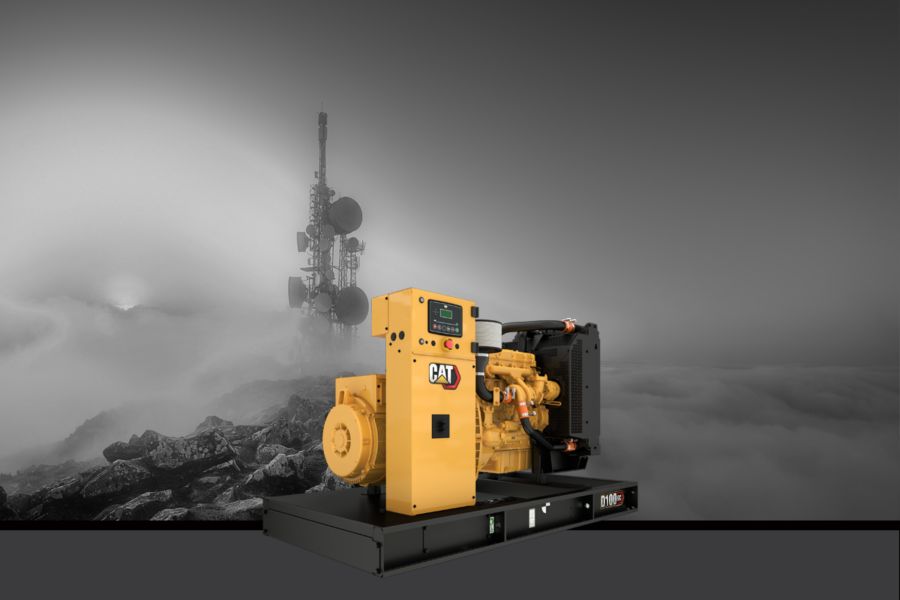

D100 GC
Producing reliable power of 100 ekW at 60 Hz, our D100 GC diesel generator sets designed to ISO 8528-5 transient response requirements. All D100 GC generator sets meet EPA Stationary Emergency (Tier 3) emissions standards.
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Brochures and Spec Sheets
- Electric Power Ratings Guide
- D100 GC, C4.4, 60 Hz 100 ekW, EPA Tier III Compliant Emissions Spec Sheet
- Cat® GC Generator Set Brochure for North America
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Standby Rating | ||
| Frequency | ||
| Emissions/Fuel Strategy | ||
| Voltage | ||
| Speed | ||
| Duty Cycle | ||
| Engine Model | ||
| Bore | 4.1 | in |
| Stroke | 5 | in |
| Displacement | 269 | in³ |
| Compression Ratio | ||
| Aspiration | ||
| Fuel System | ||
| Governor Type | ||
| Length - Maximum | 82.6 | in |
| Width - Maximum | 43.3 | in |
| Height - Maximum | 52.9 | in |
| Dry Weight - Genset (maximum) | 2222 | lb |
Standard Equipment
- Air Inlet System
- Cooling System
- Control Panel
- Exhaust System
- Fuel System
- Generator
- Governing System
- Lube System
- Mounting System
- Starting/Charging System
- General
Optional Equipment
- Alternator System
- Circuit breakers
- Cooling System
- Control Panel Options
- Enclosures
- Fuel System
- Mounting Options
- Special Packing/Inspectons for Shipment
- General - Accessories / Miscellaneous
