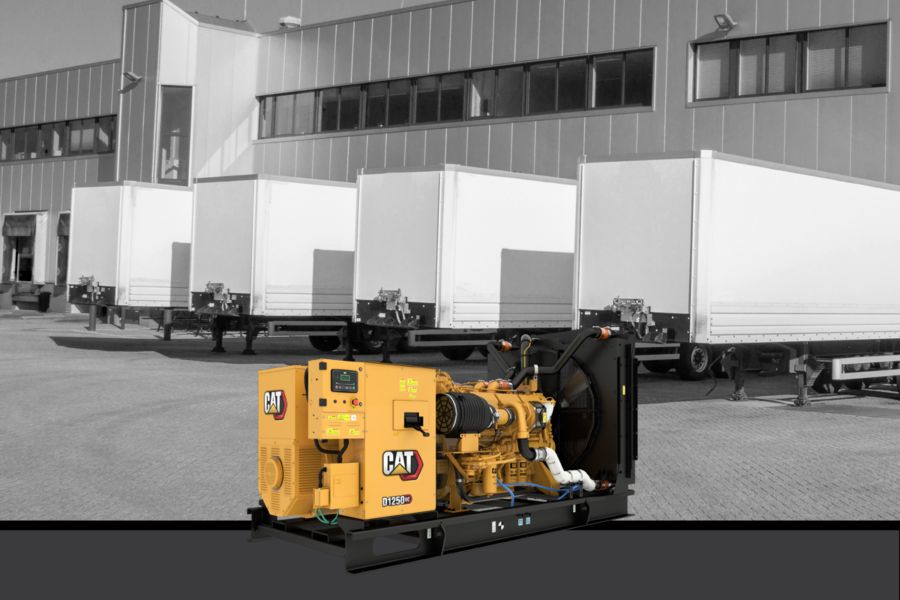

D1250 GC

Cat

Producing reliable power at 1250 ekW, 60 Hz, our D1250 GC diesel generator set is made to meet your needs in standby applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. The generator set is US EPA Stationary Emergency Use Only (Tier 2) certified.

1250 ekW Generator Set for Standby applications

Brochures and Spec Sheets

Electric Power Ratings Guide
D1250 GC, C32, 60 Hz, 1250 ekW, U.S EPA Emergency Stationary Use only (Tier 2) Spec Sheet
Cat® GC Generator Set Brochure for North America

Gallery

Specifications

Specification	Value	Unit
Standby Rating
Frequency
Emissions/Fuel Strategy
Voltage
Speed
Duty Cycle
Engine Model
Bore	5.71	in
Stroke	6.38	in
Displacement	1958.86	in³
Compression Ratio
Aspiration
Fuel System
Governor Type
Length - Minimum	164.3	in
Length - Maximum	164.3	in
Width - Minimum	82.3	in
Width - Maximum	82.3	in
Height - Minimum	89.3	in
Height - Maximum	89.3	in
Dry Weight - Genset (minimum)	15776	lb
Dry Weight - Genset (maximum)	15776	lb

Standard Equipment

Control Panel
Cooling System

Optional Equipment

Control Panels
Starting/Charging
General
