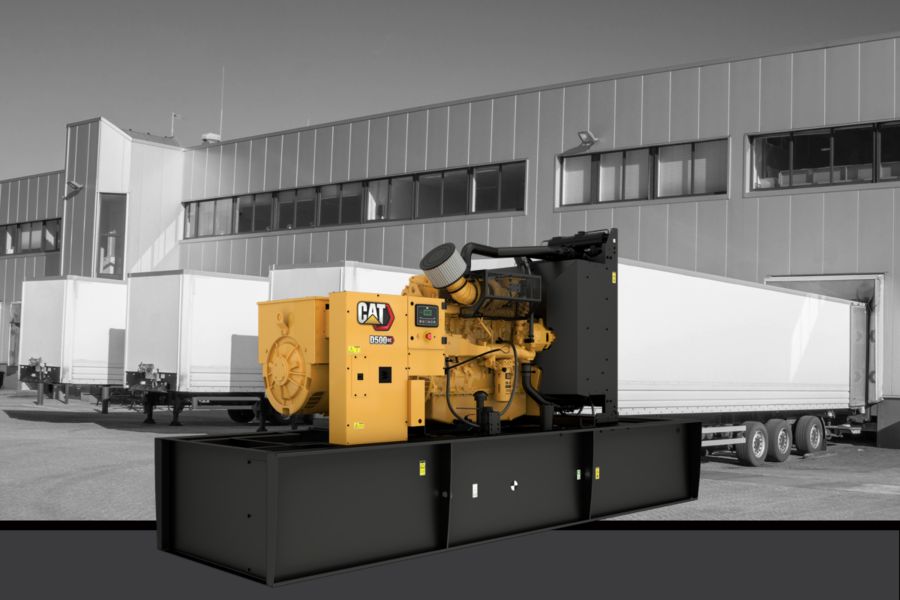

D500 GC (60 Hz)

Cat

The D500 GC diesel generator sets have been developed to meet your needs in standby applications. Producing reliable power of 500 ekW at 60 Hz, meeting ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. The engines are certified for U.S. EPA Certified for Stationary Emergency Use Only (Tier 2 or Tier 3 Nonroad Equivalent Emission Standards).

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Standby Rating
Frequency
Emissions/Fuel Strategy
Voltage
Speed
Duty Cycle
Engine Model
Bore	5.4	in
Stroke	6.8	in
Displacement	928	in³
Compression Ratio
Aspiration
Fuel System
Governor Type
Length - Maximum	189.6	in
Width - Maximum	64.2	in
Height - Minimum	2034	in
Height - Maximum	101.7	in
Dry Weight - Genset (minimum)	8280.6	lb
Dry Weight - Genset (maximum)	10346.3	lb

Standard Equipment

Air Inlet System
Control Panel
Cooling System
Exhaust System
Fuel System
Generator Set
Generators and Generator Attachments
Governing System
Lube System
Mounting System
Protection
Starting/Charging System
General

Optional Equipment

Air Inlet System
Bases, Mounting & Fuel Tanks
Exhaust
Circuit breaker
Control System
Enclosures
Exhaust System
Generator
Starting System
Power Termination
General
Lube System
Mounting System
