Cat® G3516K
Cat® G3516K gas generator sets have been developed to meet your continuous power needs from natural gas to biogas, coal mine gases, or hydrogen fuel blends to support combined heat and power (CHP), emergency power, and local grid support applications.

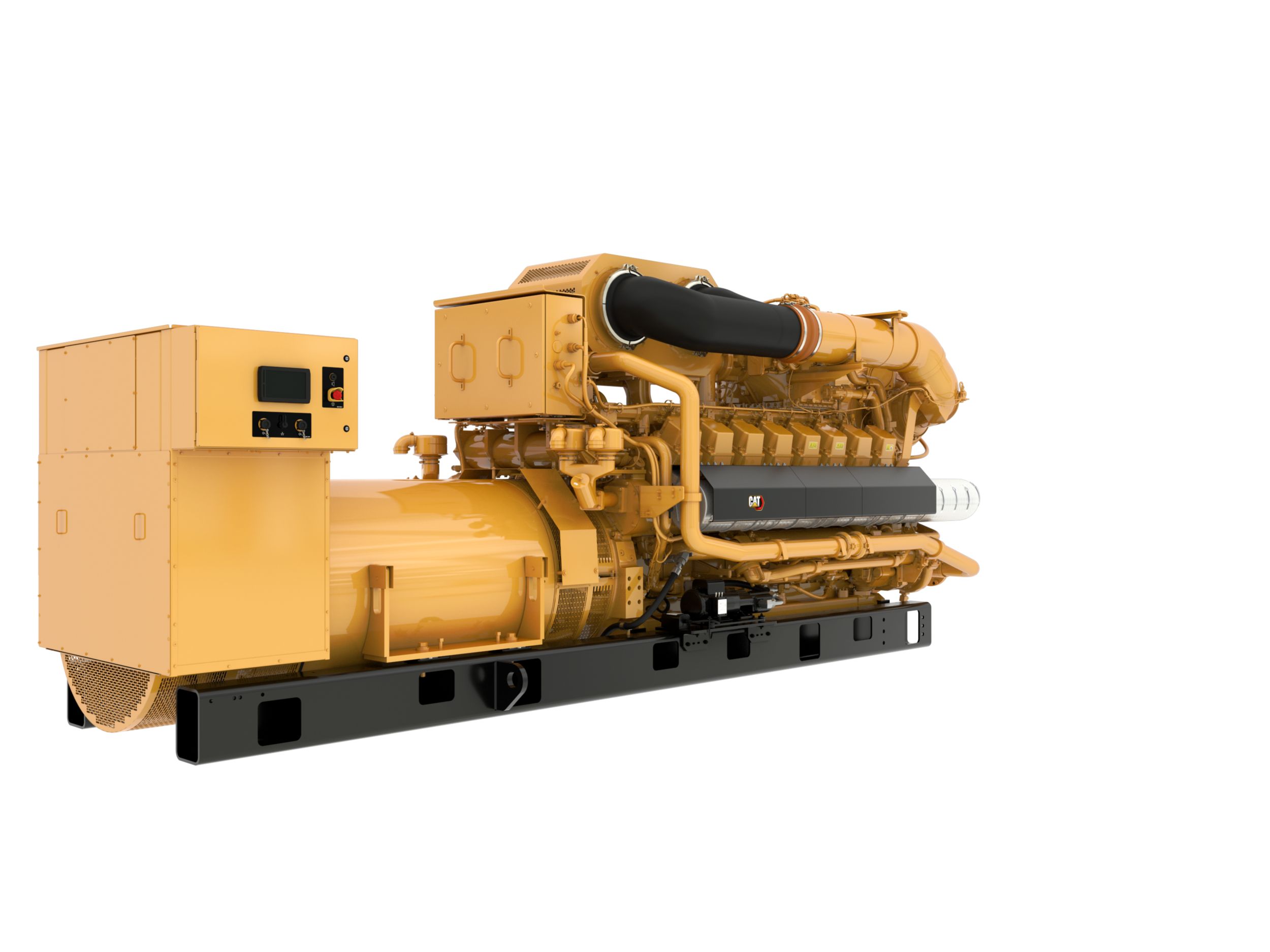

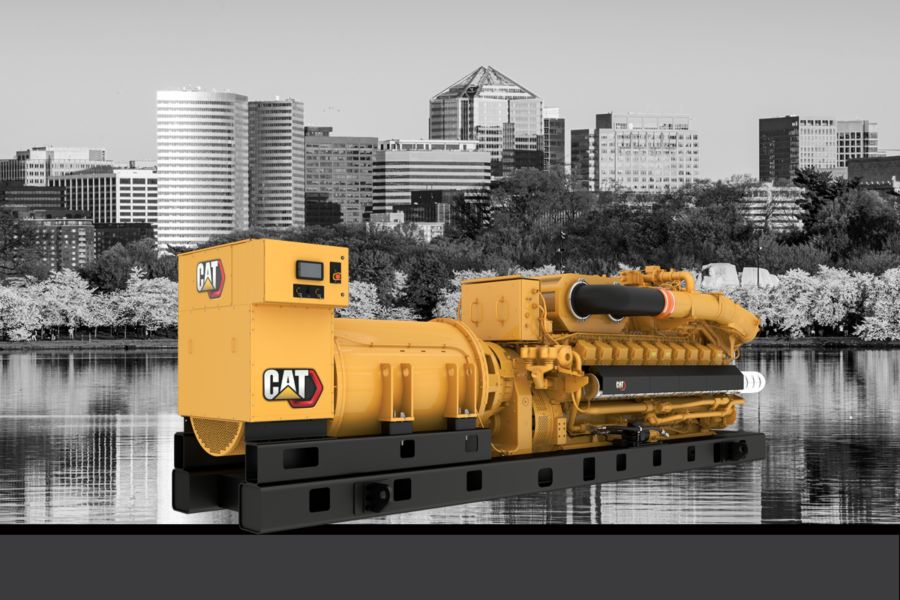

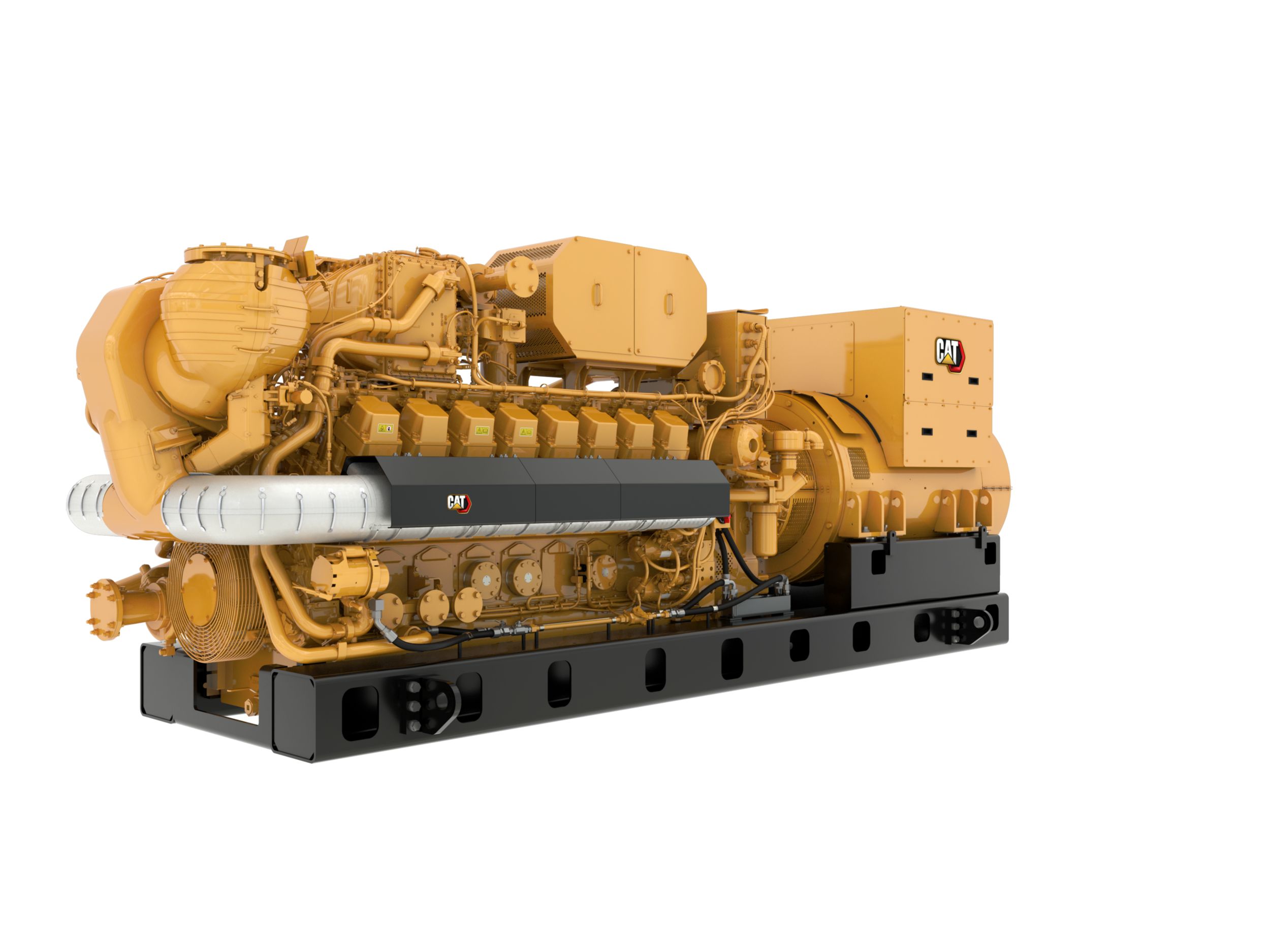

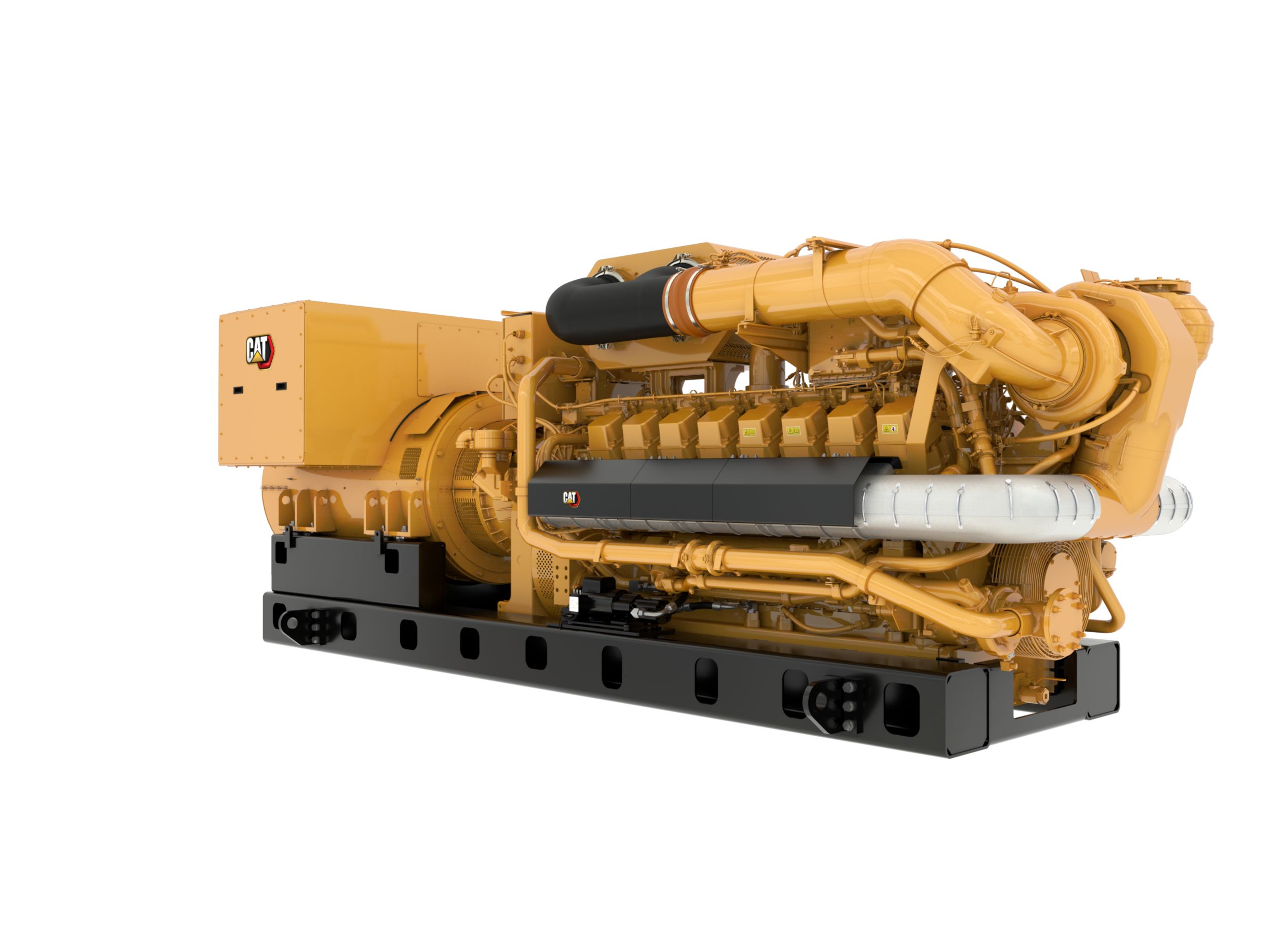

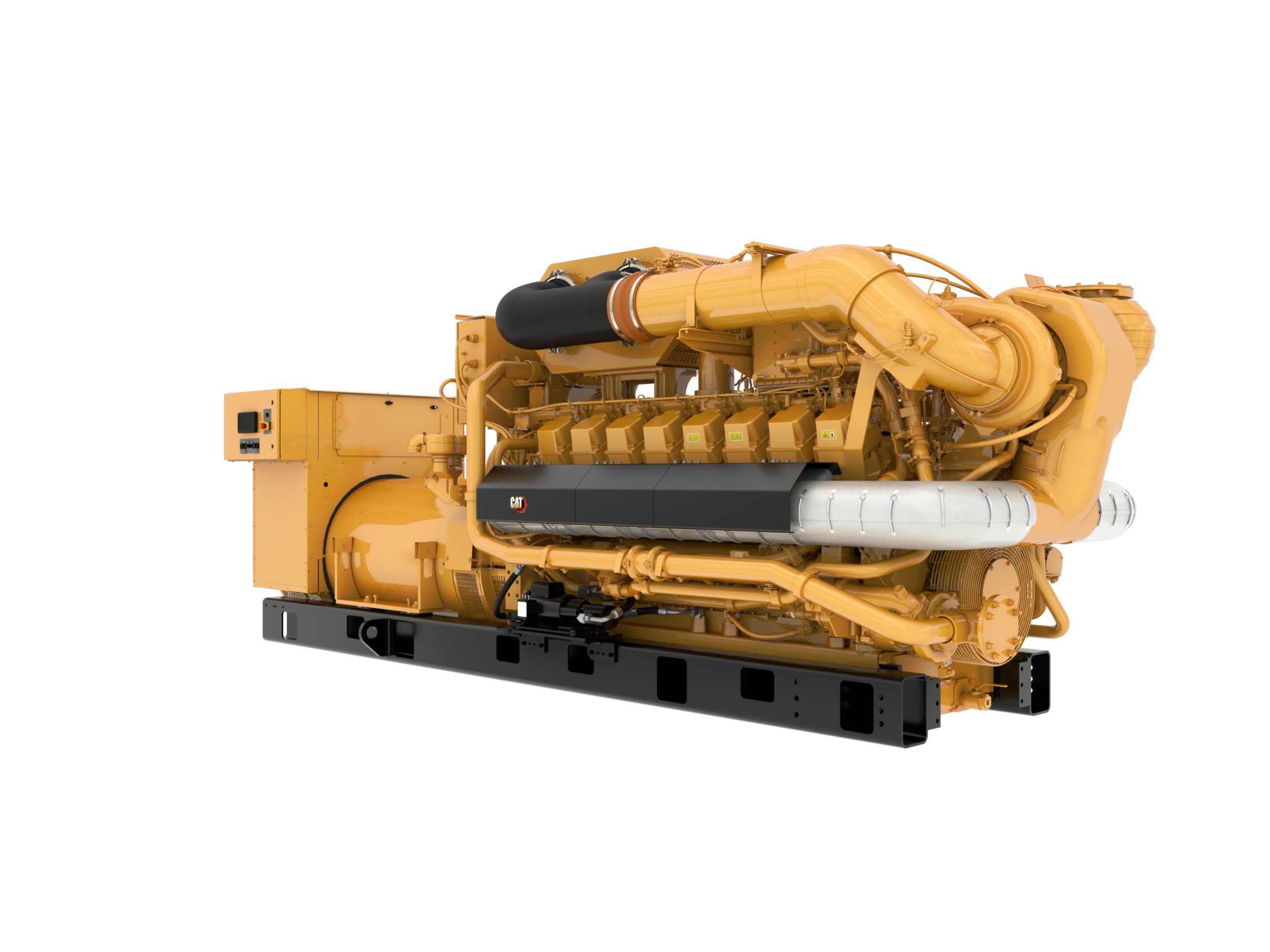

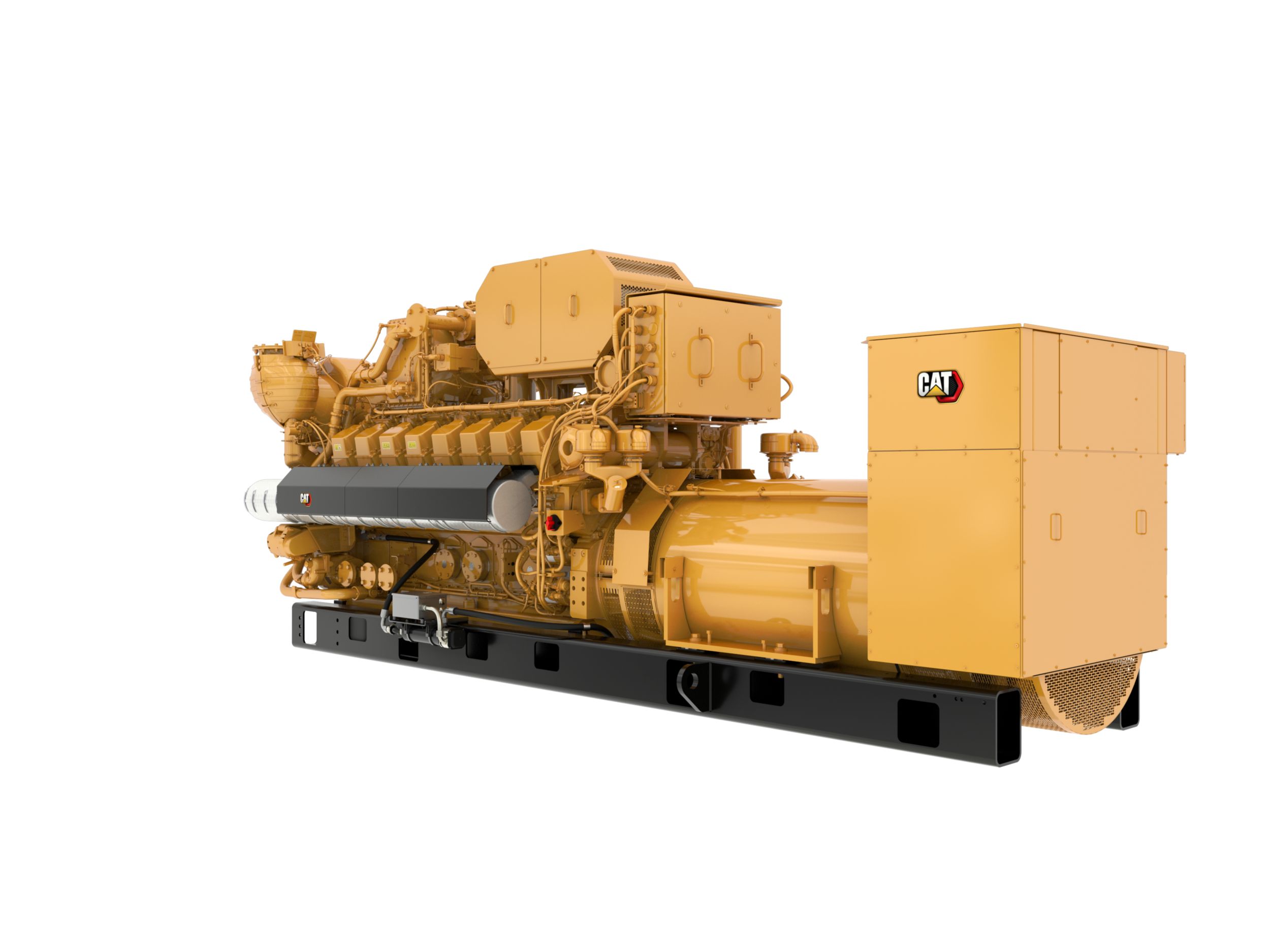

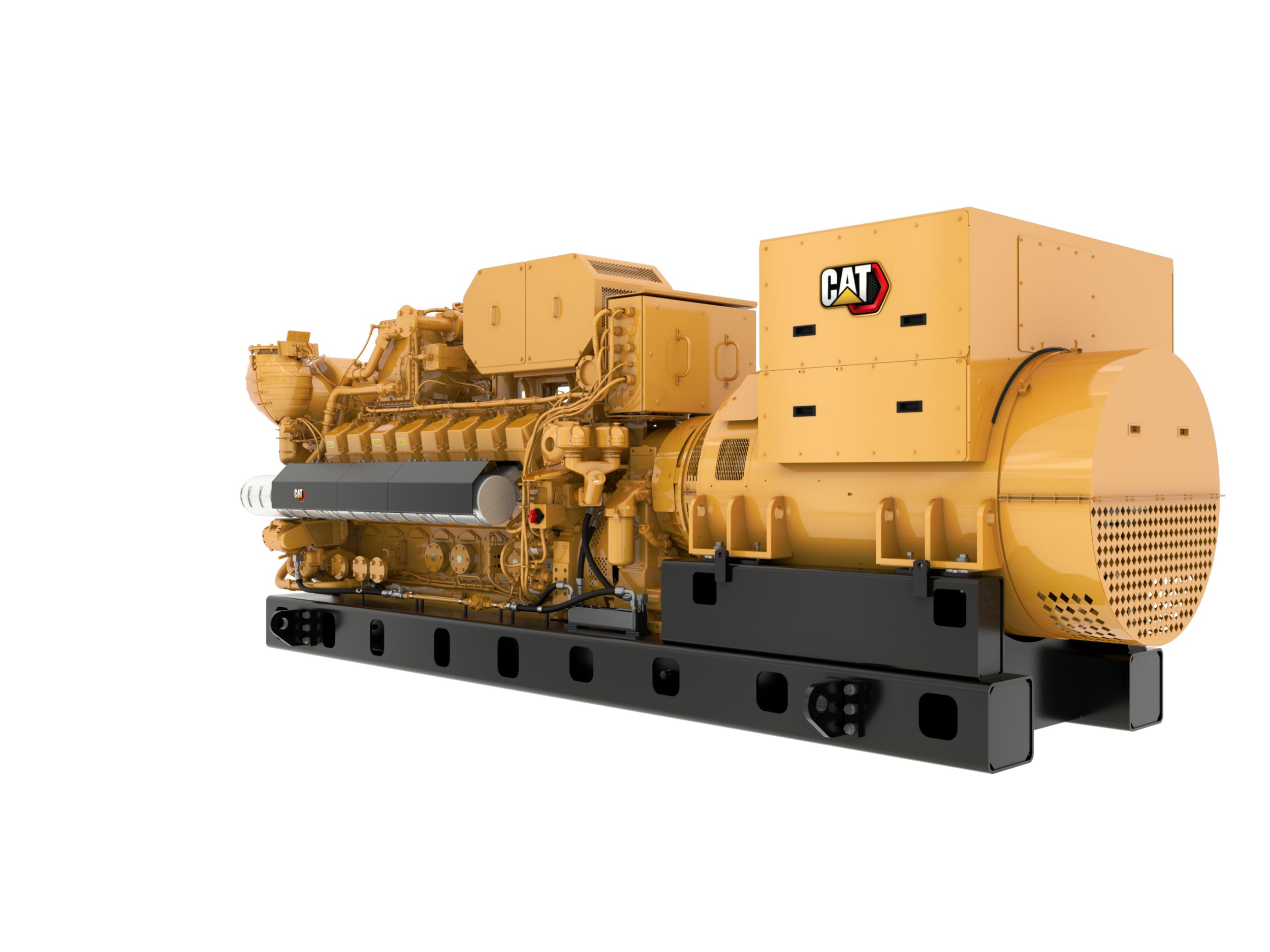

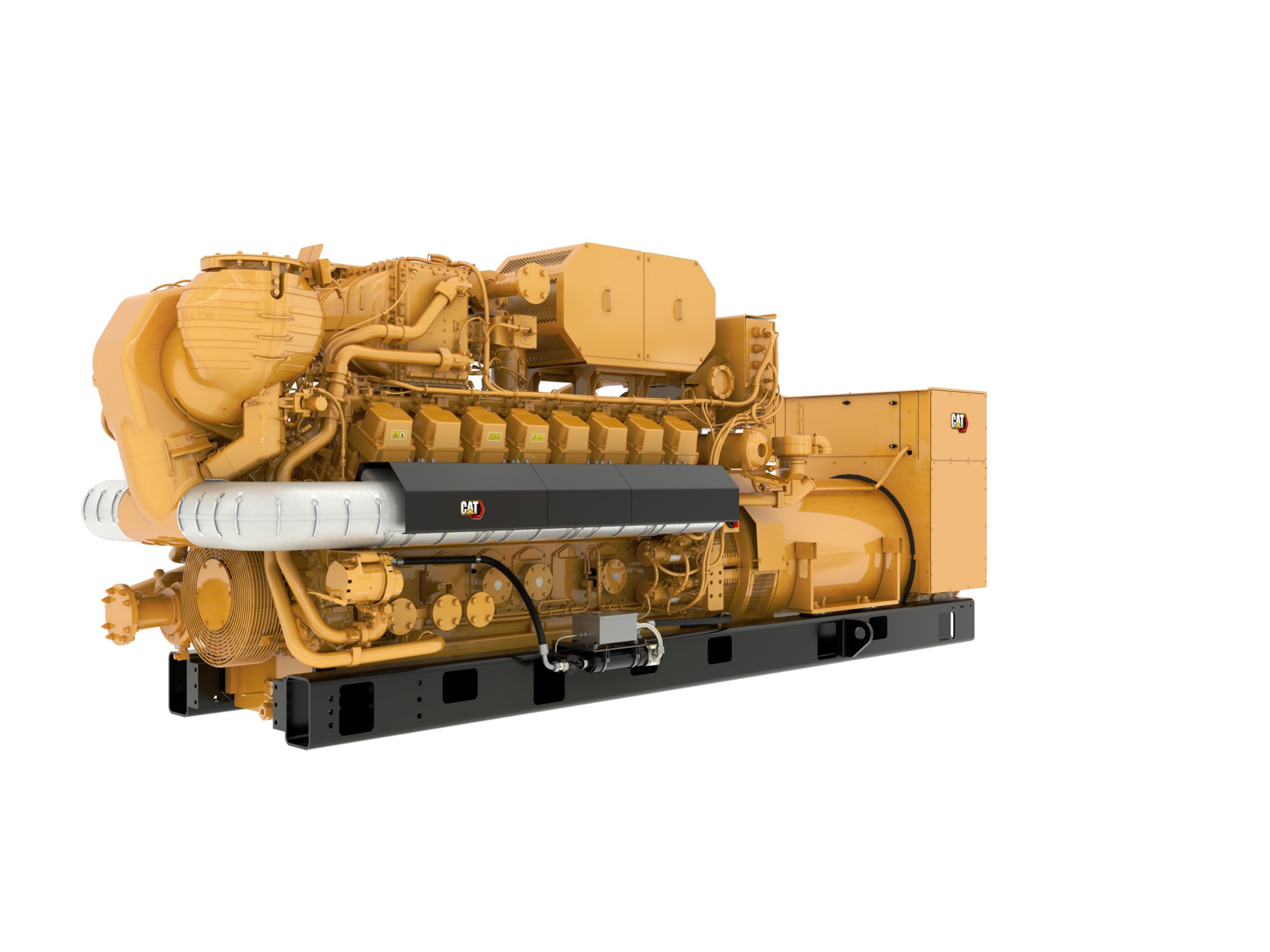

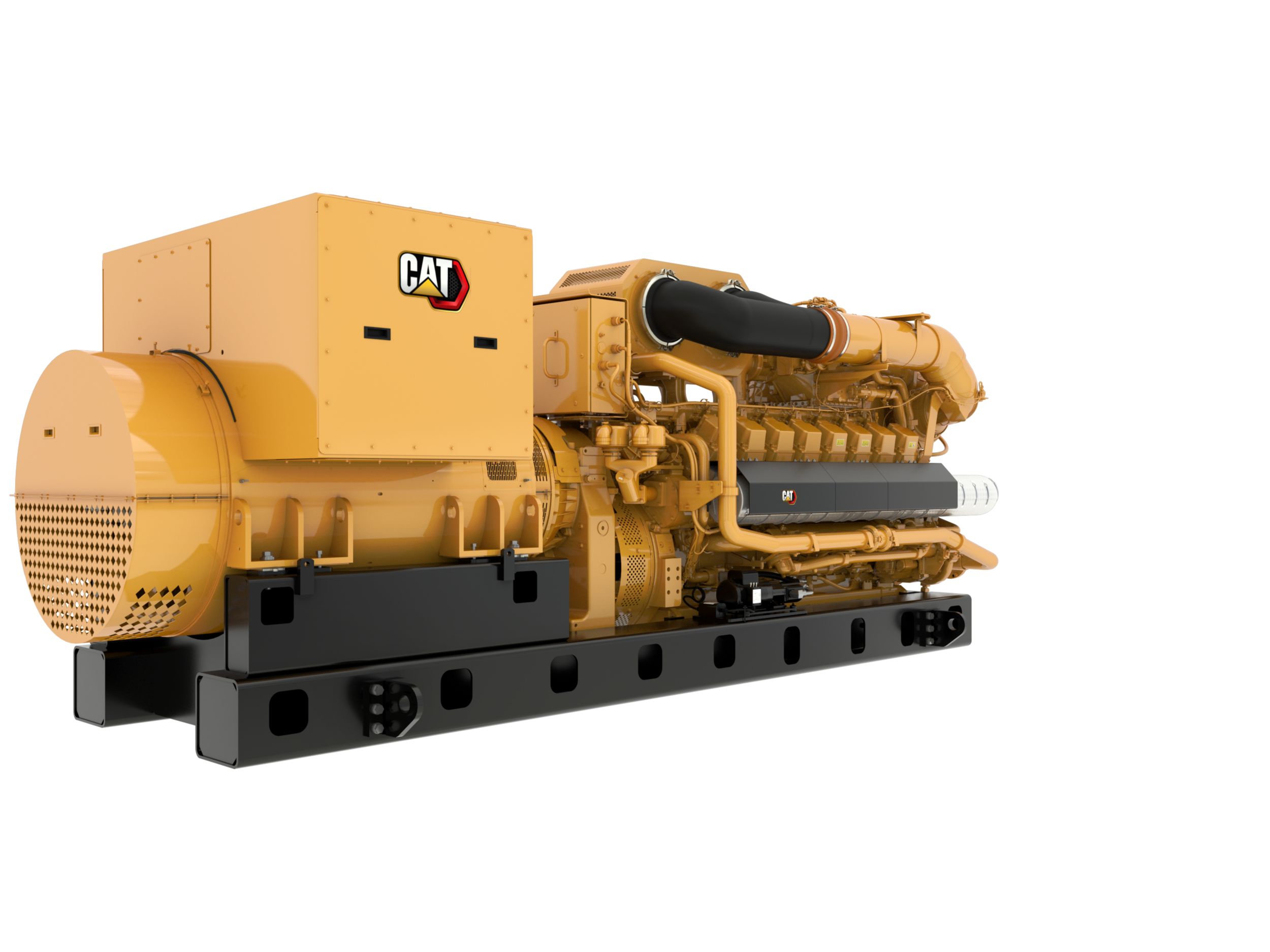

Cat® G3516K Gas Generator
Brochures and Spec Sheets
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Continuous Rating | ||
| Fuel Type | ||
| Maximum Electrical Efficiency | ||
| Configuration | ||
| Fuel Type | ||
| Configuration | ||
| Genset Rating | 2552 | ekW |
| Compression Ratio | ||
| Configuration | ||
| Genset Rating | 2536 | ekW |
| Compression Ratio | ||
| Configuration | ||
| Compression Ratio | ||
| Configuration | ||
| Compression Ratio | ||
| Bore | 6.7 | in |
| Stroke | 8.5 | in |
| Displacement | 5956 | in³ |
| Aspiration | ||
| Fuel System | ||
| Governor Type | ||
| Performance Number | ||
| Frequency | ||
| Duty | ||
| Genset Rating | 2552 | ekW |
| Genset Rating | 3145 | kVA |
| Power Factor | ||
| Genset Efficiency | ||
| Engine Speed | 1500 | rpm |
| Note (01) | ||
| Heat Rejection - Engine Jacket Water (JW) | 32942 | Btu/h |
| Heat Rejection - Auxiliary Circuit | 7271 | Btu/h |
| Heat Rejection - Engine Jacket Water Circuit (JW+AC+OC) | 80231 | Btu/h |
| Heat Rejection - Engine Radiated | 10408 | Btu/h |
| Heat Rejection - Exhaust | 66589 | Btu/h |
| 100% Load With Fan | 7655 | gal/hr |
| 75% Load With Fan | 7737 | gal/hr |
| 50% Load With Fan | 8149 | gal/hr |
| Auxiliary Circuit Temperature (Maximum Inlet) | 134 | °F |
| Jacket Water Temperature (Maximum Outlet) | 210 | °F |
| Ambient Altitude Capability | 3543 | ft |
| Note (01) | ||
| Note (01) | ||
| Exhaust Mass Flow Rate | 30242 | lb/h |
| Exhaust Flow | 15912 | ft³/min |
| Exhaust Temperature – Engine Outlet | 747 | °F |
| NOx | 0.5 | lb/h |
| Dim "A" | 290.35 | in |
| Dim "B" | 72.05 | in |
| Dim "C" | 96.97 | in |
| Dry Weight | 52,250 | lb |
| Note (01) | ||
| Standards and Codes | ||
| Continous | ||
| Note (01) | ||
| Note (02) | ||
| Note (03) | ||
| Note (04) | ||
| Note (05) | ||
| Displacement | 5956 | in³ |
| Frequency | ||
| Stroke | 8.5 | in |
| Frequency | ||
| Compression Ratio | ||
| Engine Model | ||
| RPM | ||
| Bore | 6.7 | in |
| Aspiration |
Standard Equipment
- Air Cleaner
- Starting
- Cooling
- Mounting System
- Controller
- Telematics
- Alternator
- Alternator attachments
- Power Termination
Optional Equipment
- Air Cleaner
- Starting
- Cooling
- Fuel System
- Lubrication System
- Muffler
- Mounting System
- Controller
- Controller attachments
- Telematics
- Alternator Temperature rise (over 40°C ambient)
- Alternator Output Voltage
- Alternator attachments
- Power termination
- Circuit breaker
- Trip Unit
- Ancilliary Equipment
- Certifications
- Grid Code Compliance
- Extended service terms
- Extended service coverage
