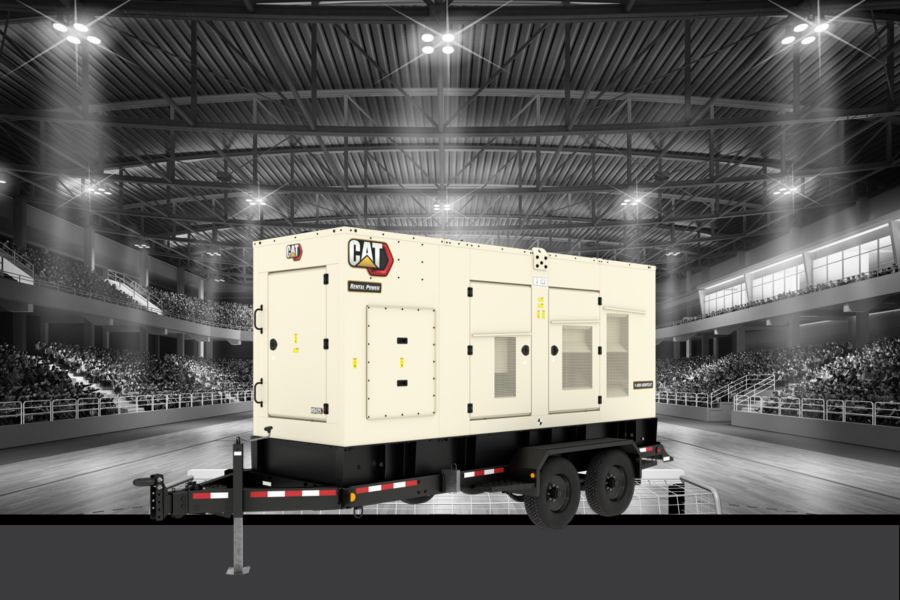

XQ425 Tier 4 Final

XQ425 Tier 4 Final
Caterpillar New Product
Request a Quote Find a Location
The Cat® XQ425 provides world class performance and enhanced usability. This model is powered by the fuel-efficient Cat C13 Tier 4 Final engine compliant equipped with the Cat NOx Reduction System. Equipped with the new XQCP control panel, the XQ425 features a user-friendly interface and automatic generator set paralleling. A principle advantage of the control system offers simpler and faster voltage changes. Providing greater flexibility when moving between multiple job sites with differing frequency and voltage needs, the auto-configuration capability eliminates the time required when reprogramming units and potential errors. Additional features include lower noise levels and improved part load fuel consumption.
The Cat® XQ425 provides world class performance and enhanced usability. This model is powered by the fuel-efficient Cat C13 engine equipped with the Cat NOx Reduction System. Equipped with the new XQCP control panel, the XQ425 features a user-friendly interface and automatic generator set paralleling. A principle advantage of the control system offers simpler and faster voltage changes. Providing greater flexibility when moving between multiple job sites with differing frequency and voltage needs, the auto-configuration capability eliminates the time required when reprogramming units and potential errors. Additional features include lower noise levels and improved part load fuel consumption.

Brochures and Spec Sheets

Gallery

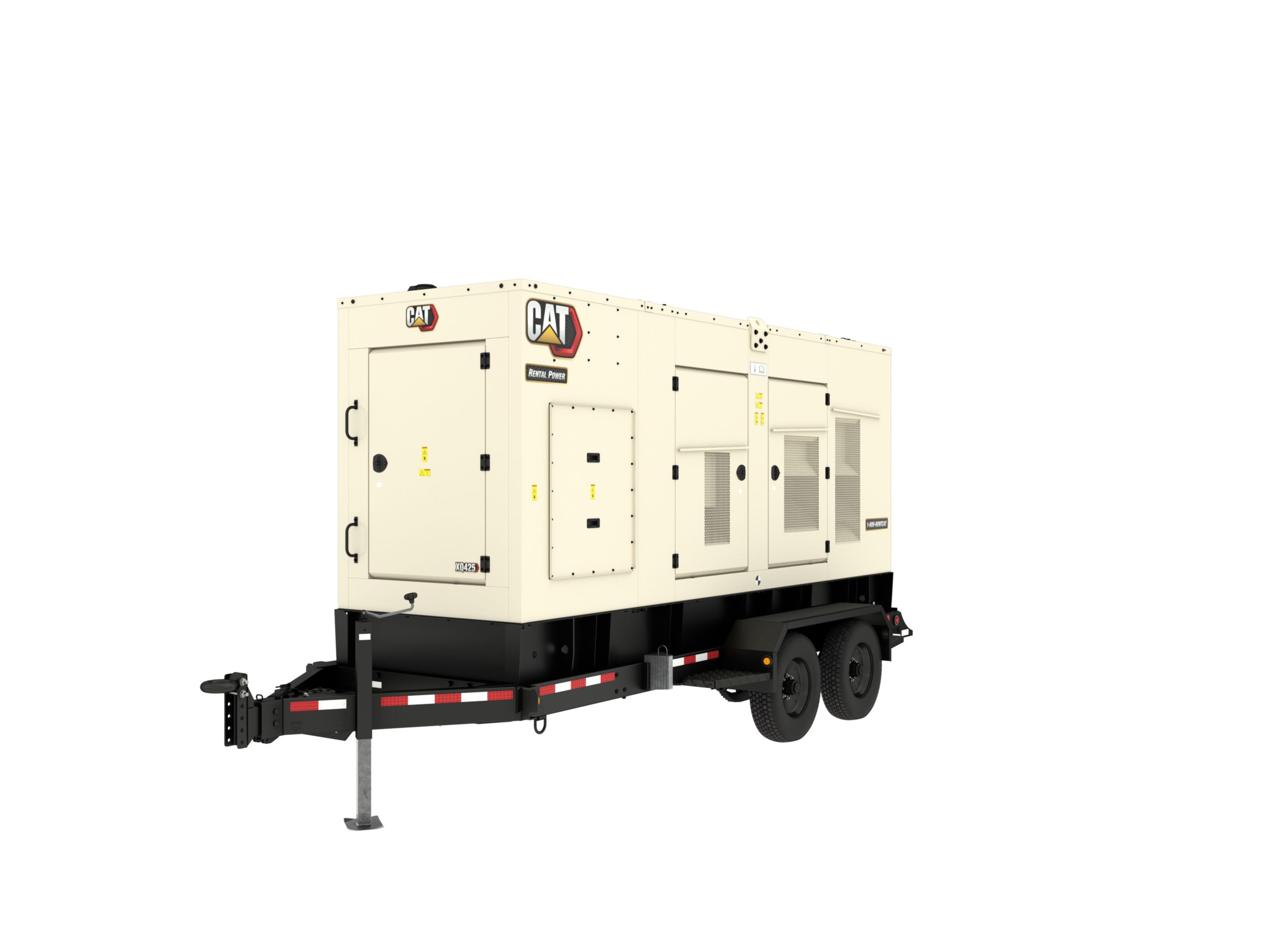

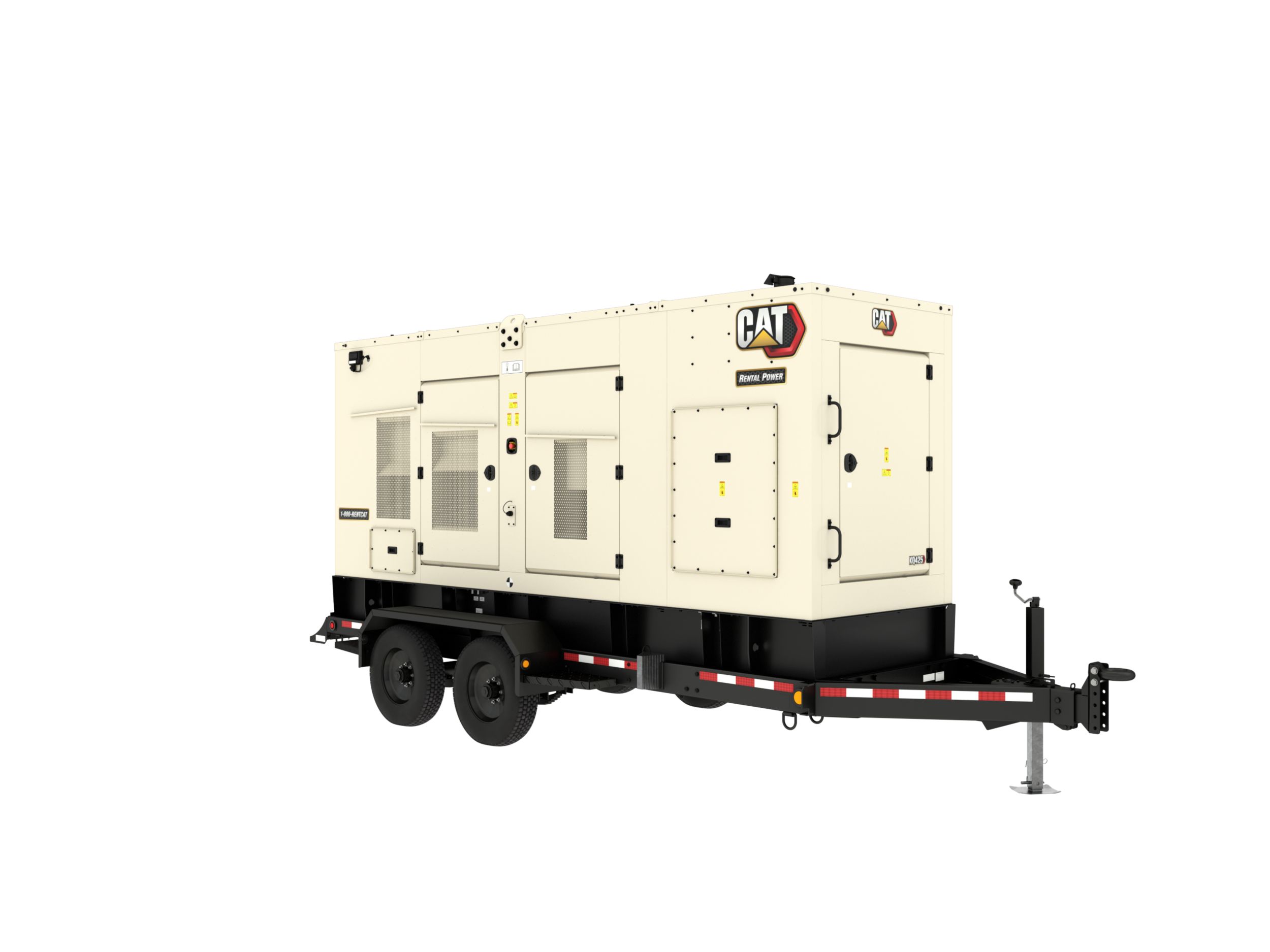

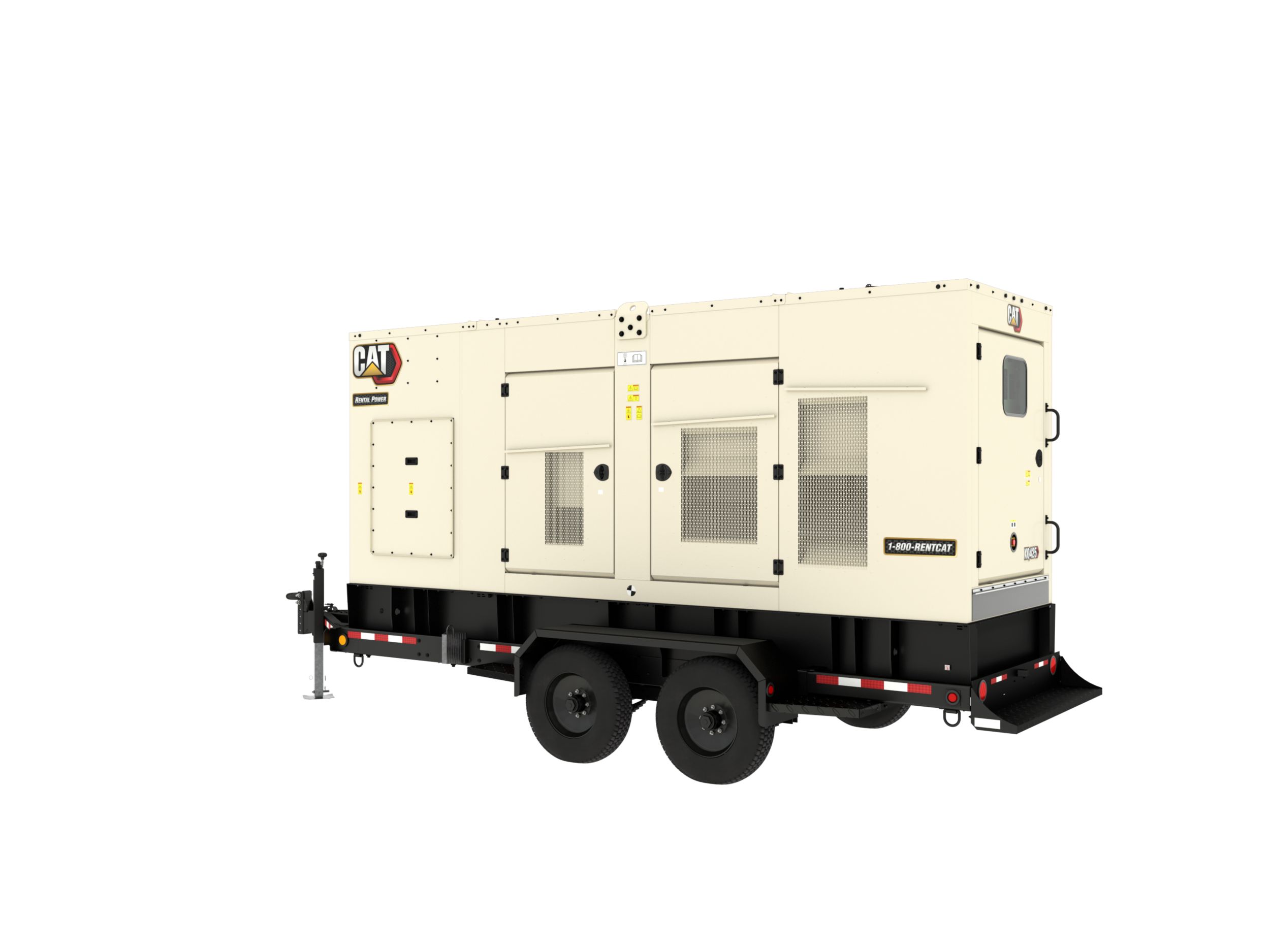

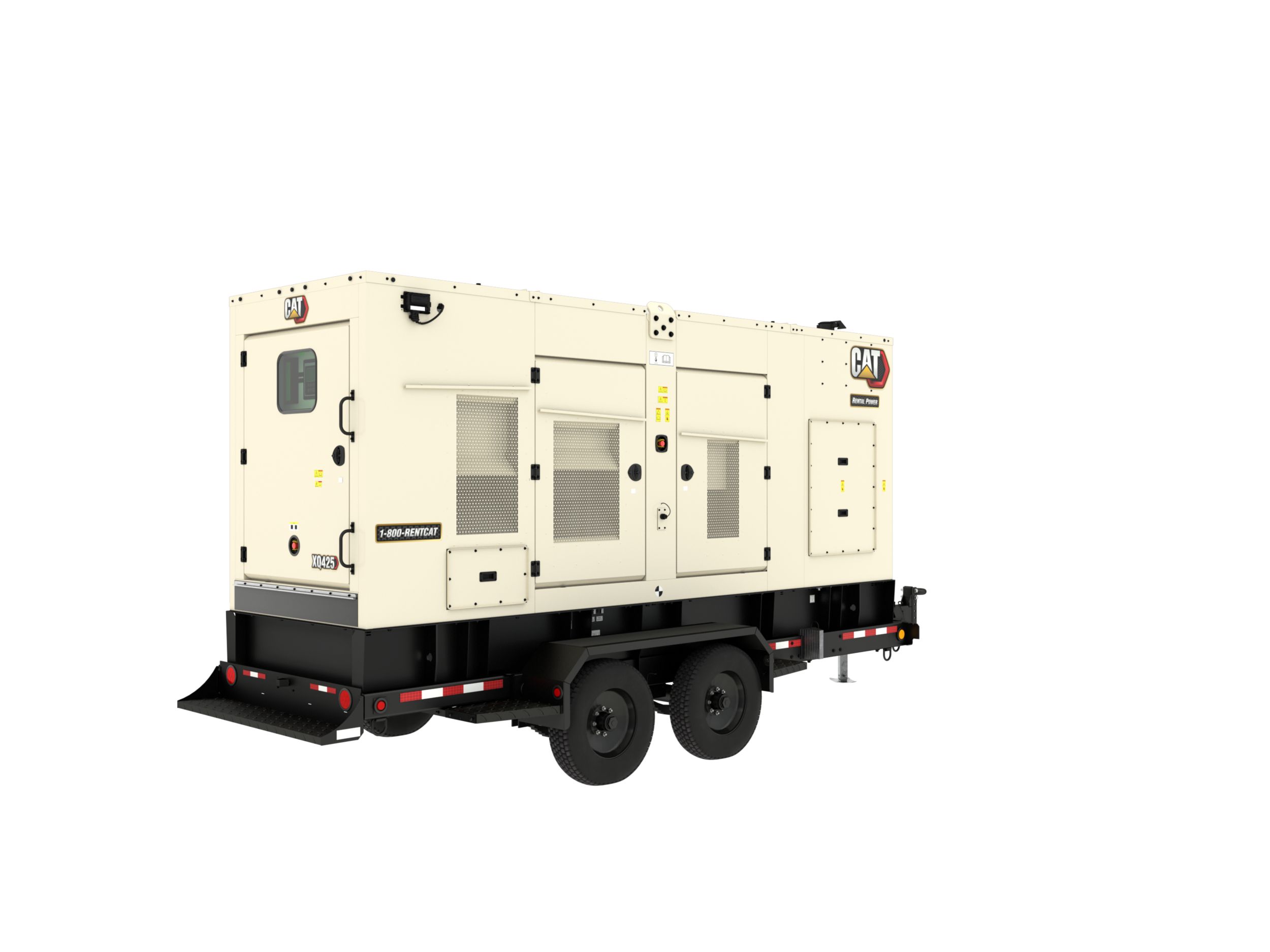

XQ425 Tier 4 Final XQ425 Tier 4 Final XQ425 Tier 4 Final XQ425 Tier 4 Final

Specifications

Specification Value Unit
Rating Prime
Frequency
Voltage
Rating Standby
Engine
Fuel
Height - Without Trailer 99.4 in
Length - Without Trailer 213.7 in
Width - Without Trailer 64 in
Weight with Lube Oil and Coolant, Without Trailer 13,816 lb
100% Load 60Hz 23.1 gal/hr
75% Load 60Hz 17.7 gal/hr
50% Load 60Hz 12.7 gal/hr
100% Load 60Hz 25.1 gal/hr
75% Load 60Hz 19.2 gal/hr
50% Load 60Hz 13.6 gal/hr
Sound Power @ 7 meters (23 feet) @ All Ratings
Weight - With Trailer, Lube, Oil and Coolant 17696 mm
Fuel System
Emissions
Governor Type
Type

Standard Equipment

  • CAT C13 Diesel Engine
  • Generator
  • Control Panel
  • Cat Connect remote monitoring
  • Cooling System
  • Charging / Starting System
  • Fuel System
  • Air Filter
  • Distribution
  • Structure
  • Enclosure
  • Exhaust
  • Lube Oil
  • General
