Caterpillar

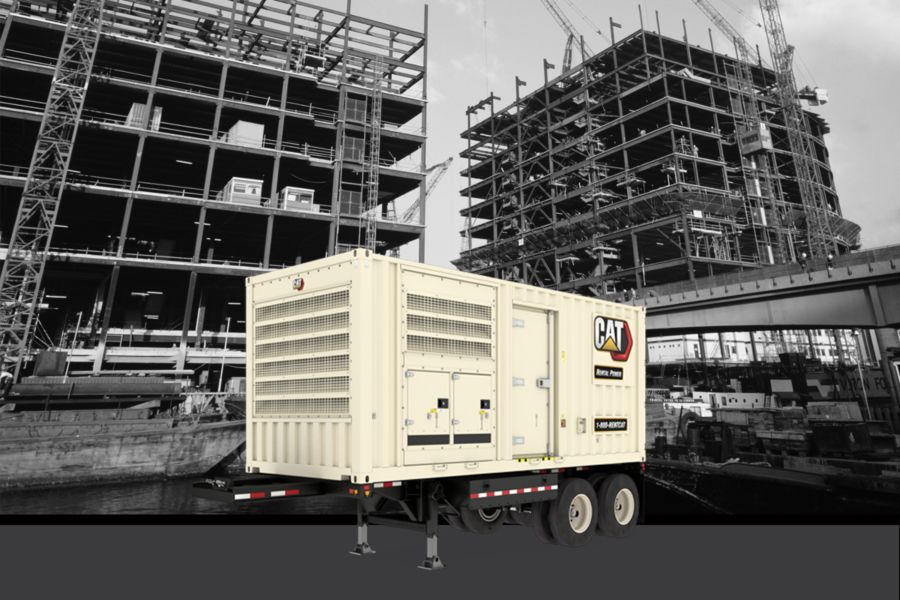

The Cat® XQ570 Rental Power Generator Setprovides world class performance and enhanced usability. This model is powered by the fuel-efficient Cat C18 Tier 4 Final compliantengine equipped with the Cat NOx Reduction System. Equipped with the new EMCP 4.4 control panel, the XQ570 features a user-friendly interface and automatic generator set paralleling. A principle advantage of the control system offers simpler and faster voltage changes. Providing greater flexibility when moving between multiple job sites with differing frequency and voltage needs, the auto-configuration capability eliminates the time required when reprogramming units and potential errors. Additional features include lower noise levels and improved part load fuel consumption.
XQ570 Rental Power Genserator Set.
Brochures and Spec Sheets
Gallery
Specifications
| Specification |
Value |
Unit |
| Rating Prime |
|
|
| Frequency |
|
|
| Voltage |
|
|
| Rating Standby |
|
|
| Engine |
|
|
| Fuel |
|
|
| Height - Without Trailer |
102 |
in |
| Length - Without Trailer |
240 |
in |
| Width - Without Trailer |
96 |
in |
| Weight with Lube Oil and Coolant, Without Trailer |
24125 |
lb |
| 100% Load 60Hz |
33.2 |
gal/hr |
| 75% Load 60Hz |
26.2 |
gal/hr |
| 50% Load 60Hz |
19 |
gal/hr |
| 100% Load 60Hz |
35.9 |
gal/hr |
| 75% Load 60Hz |
28.3 |
gal/hr |
| 50% Load 60Hz |
20.5 |
gal/hr |
| Sound Power @ 7 meters (23 feet) @ All Ratings |
|
|
Standard Equipment
- CAT C18 Diesel Engine
- Generator
- Control Panel
- Cat Connect remote monitoring
- Cooling System
- Charging / Starting System
- Fuel System
- Air Filter
- Distribution
- Structure
- Enclosure
- Exhaust
- Lube Oil
- General
