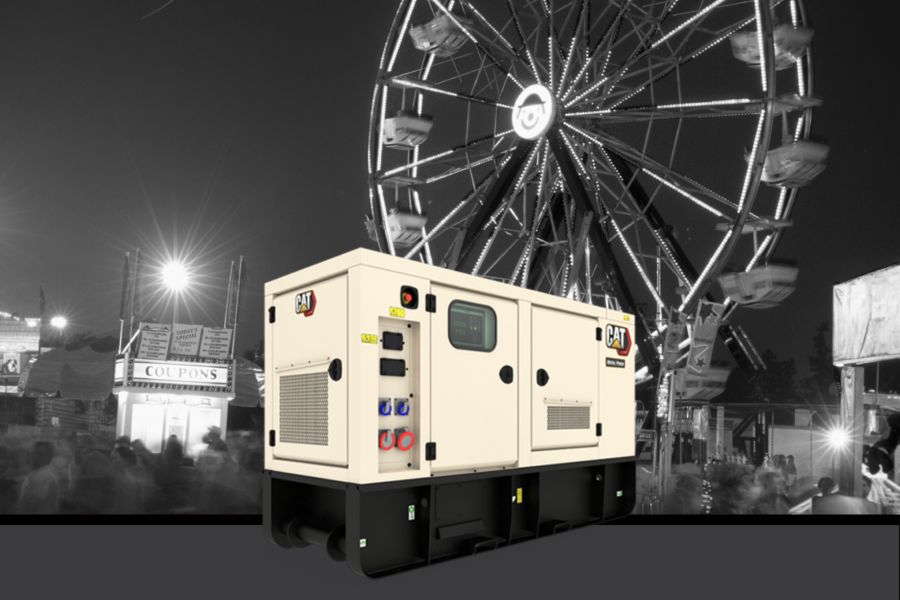

XQP100

Caterpillar

This XQP100 generator set provide low fuel consumption performance. With a robust, rental or mobile-ready construction, the product line is designed to be easily transported around project sites safely and efficiently. Heavy-duty bases with integrated fork lift pockets allow the unit to be dragged and lifted with ease, while Clipsal or CEE socket options are available on select models to reduce installation time and provide trouble-free power distribution.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Rating Prime
Frequency
Voltage
Engine
Fuel
Width	44.1	in
Height	72.7	in
Length	109.1	in
Weight - With Lube Oil and Coolant	4469	lb
100% Load 50Hz	6.2	gal/hr
100% Load 60Hz	7.3	gal/hr
75% Load 50Hz	5.4	gal/hr
75% Load 60Hz	5.9	gal/hr
50% Load 50Hz	3.9	gal/hr
50% Load 60Hz	4.2	gal/hr
100% Load 50Hz	6	gal/hr
100% Load 60Hz	7.1	gal/hr
75% Load 50Hz	4.5	gal/hr
75% Load 60Hz	5.3	gal/hr
50% Load 50Hz	3.1	gal/hr
50% Load 60Hz	3.7	gal/hr
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)

Standard Equipment

CAT C4.4 Diesel Engine
Generator
Air Filter
Cat Connect remote monitoring
Cooling System
Charging / Starting System
Fuel System
Control Panel
Distribution
Structure
Enclosure
Exhaust
Lube Oil
General
