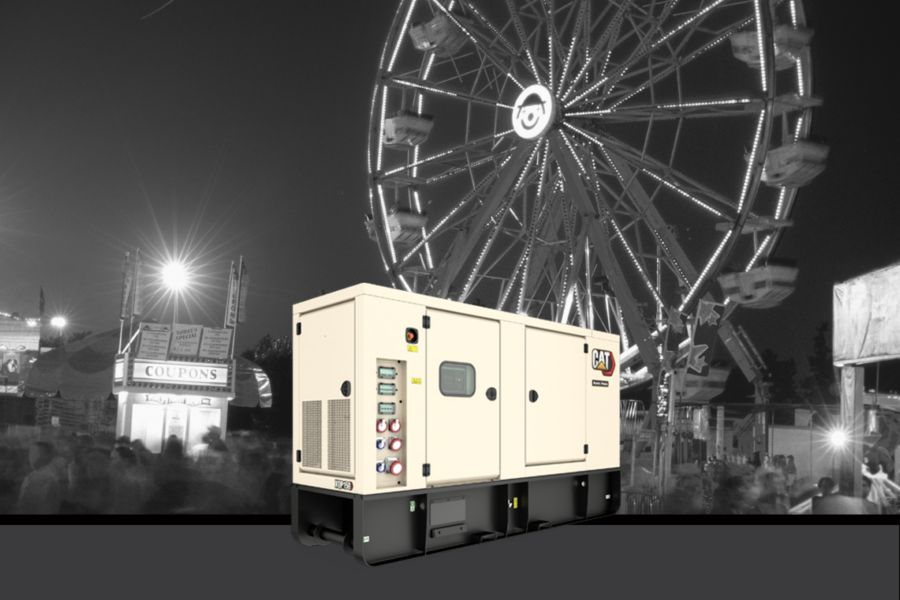

XQP150

Caterpillar

This XQP150 generator set is fuel consumption optimized . Each model delivers increased flexibility by easily switching between 50 and 60 Hz, which allows one machine to satisfy varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Rating Prime
Frequency
Voltage
Engine
Fuel
Width	44.1	in
Height	87.6	in
Length	138.6	in
Weight - With Lube Oil and Coolant	5615	lb
100% Load 50Hz	9.9	gal/hr
100% Load 60Hz	11.2	gal/hr
75% Load 50Hz	7.8	gal/hr
75% Load 60Hz	9.2	gal/hr
50% Load 50Hz	5.4	gal/hr
50% Load 60Hz	6.3	gal/hr
100% Load 50Hz	8.8	gal/hr
100% Load 60Hz	10.5	gal/hr
75% Load 50Hz	6.5	gal/hr
75% Load 60Hz	7.7	gal/hr
50% Load 50Hz	4.3	gal/hr
50% Load 60Hz	5	gal/hr
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)

Standard Equipment

CAT C7.1 Diesel Engine
Generator
Air Filter
Cat Connect remote monitoring
Cooling System
Charging / Starting System
Fuel System
Control Panel
Distribution
Structure
Enclosure
Exhaust
Lube Oil
General
