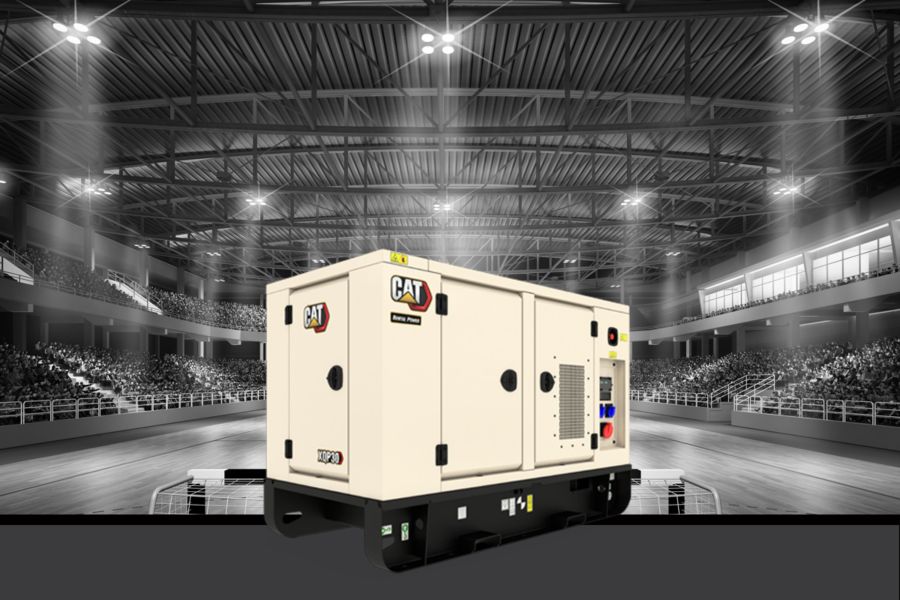

This XQP30 generator set is Fuel consumption optimized for customers in non-regulated territories. With a robust, rental or mobile-ready construction, the product line is designed to be easily transported around project sites safely and efficiently. Heavy-duty bases with integrated fork lift pockets allow the unit to be dragged and lifted with ease, while Clipsal or CEE socket options are available on select models to reduce installation time and provide trouble-free power distribution.
This XQP30 generator set is Fuel consumption optimized for customers in non-regulated territories. With a robust, rental or mobile-ready construction, the product line is designed to be easily transported around project sites safely and efficiently. Heavy-duty bases with integrated fork lift pockets allow the unit to be dragged and lifted with ease, while Clipsal or CEE socket options are available on select models to reduce installation time and provide trouble-free power distribution.

Brochures and Spec Sheets

Gallery

XQP30 XQP30 XQP30 XQP30

Specifications

Specification Value Unit
Rating Prime
Frequency
Voltage
Engine
Emissions
Fuel
Width 44.1 in
Height 62.3 in
Length 84.6 in
Weight - With Lube Oil and Coolant 2712 lb
100% Load 50Hz 1.9 gal/hr
100% Load 60Hz 2.3 gal/hr
75% Load 50Hz 1.5 gal/hr
75% Load 60Hz 1.7 gal/hr
50% Load 50Hz 1.1 gal/hr
50% Load 60Hz 1.3 gal/hr
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)

Standard Equipment

  • CAT C3.3 Diesel Engine
  • Generator
  • Air Filter
  • Cat Connect remote monitoring
  • Cooling System
  • Charging / Starting System
  • Fuel System
  • Control Panel
  • Distribution
  • Structure
  • Enclosure
  • Exhaust
  • Lube Oil
  • General
