XQP60 EU Stage V

XQP60 EU Stage V
Caterpillar
Request a Quote Find a Location

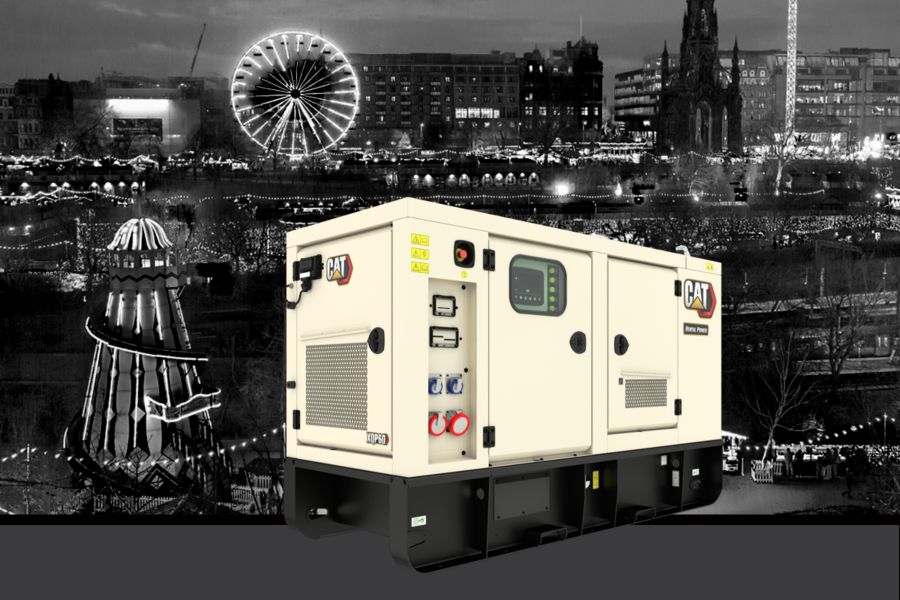

This XQP60 generator set meets the EU Stage V emission standard. With a robust, rental or mobile-ready construction, the product line is designed to be easily transported around project sites safely and efficiently. Heavy-duty bases with integrated fork lift pockets allow the unit to be dragged and lifted with ease, while Clipsal or CEE socket options are available on select models to reduce installation time and provide trouble-free power distribution.

Brochures and Spec Sheets

Gallery

XQP60 EU Stage V XQP60 EU Stage V XQP60 EU Stage V XQP60 EU Stage V

Specifications

Specification Value Unit
Rating Prime
Frequency
Voltage
Engine
Fuel
Width 45.0 in
Height 69.9 in
Length 104.2 in
Weight - With Lube Oil and Coolant 3918 lb
100% Load 50Hz 3.77 gal/hr
100% Load 60Hz 3.46 gal/hr
75% Load 50Hz 2.76 gal/hr
75% Load 60Hz 2.74 gal/hr
50% Load 50Hz 1.94 gal/hr
50% Load 60Hz 1.98 gal/hr
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)

Standard Equipment

  • Cat C3.6 Diesel Engine
  • Generator
  • Air Filter
  • Cat Connect remote monitoring
  • Cooling System
  • Charging / Starting System
  • Fuel System
  • Control Panel
  • Distribution
  • Structure
  • Enclosure
  • Exhaust
  • Lube Oil
  • General
