3406C

3406C
Caterpillar
Request a Quote Find a Location

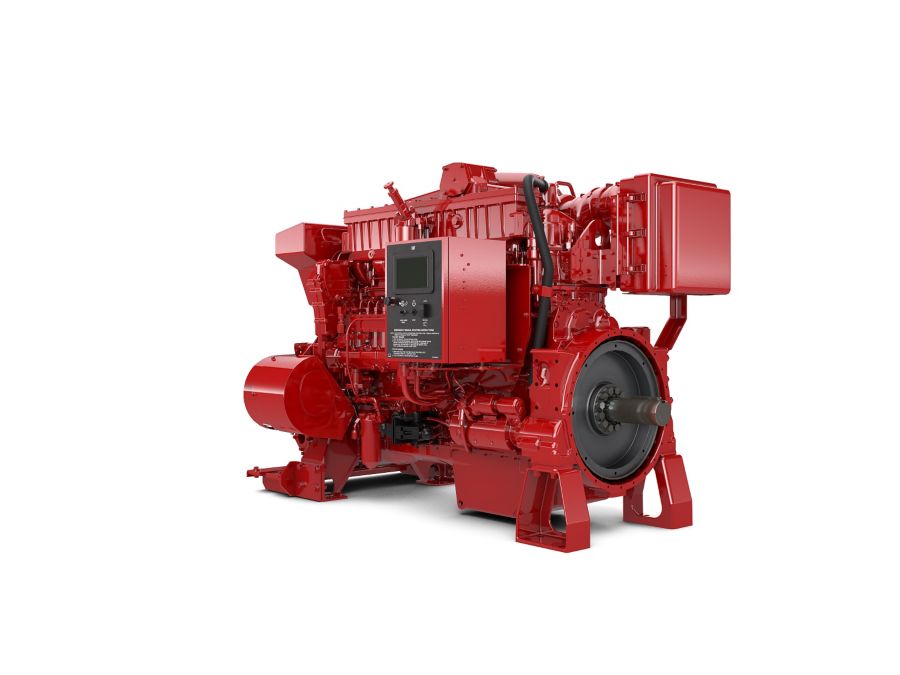

The Cat?� 3406C Industrial Diesel Fire Pump Engine is offered in ratings ranging from 218-359 kW (292-482 hp) @ 1750-2300 rpm. These ratings are non-certified and available for global non-regulated areas. They are FM Approved and UL Listed. Additional 3406C ratings with or without radiators are available, but not FM approved or UL listed. Starting on demand is a must for a fire pump engine - always. Cat?� fire pump engines have a reputation for reliable starts and long efficient service.
The Cat?� 3406C Industrial Diesel Fire Pump Engine is offered in ratings ranging from 218-359 kW (292-482 hp) @ 1750-2300 rpm. These ratings are non-certified and available for global non-regulated areas. They are FM Approved and UL Listed. Additional 3406C ratings with or without radiators are available, but not FM approved or UL listed. Starting on demand is a must for a fire pump engine - always. Cat?� fire pump engines have a reputation for reliable starts and long efficient service.

Gallery

3406C

Specifications

Specification Value Unit
Maximum Power 482 hp
Rated Speed
Minimum Power 292 hp
Emissions
Engine Configuration
Bore 5.4 in
Stroke 6.5 in
Displacement 893 in³
Compression Ratio
Aspiration
Rotation from Flywheel End
Aftertreatment
Length 65.4 in
Height 52.6 in

Standard Equipment

  • Air Inlet System
  • Charging System
  • Control System
  • Cooling System
  • Exhaust System
  • Flywheels and Flywheel Housing
  • Fuel System
  • Instrumentation
  • Lube System
  • Mounting System
  • Power Take-Offs
  • Protection System
  • General
