3508

Caterpillar

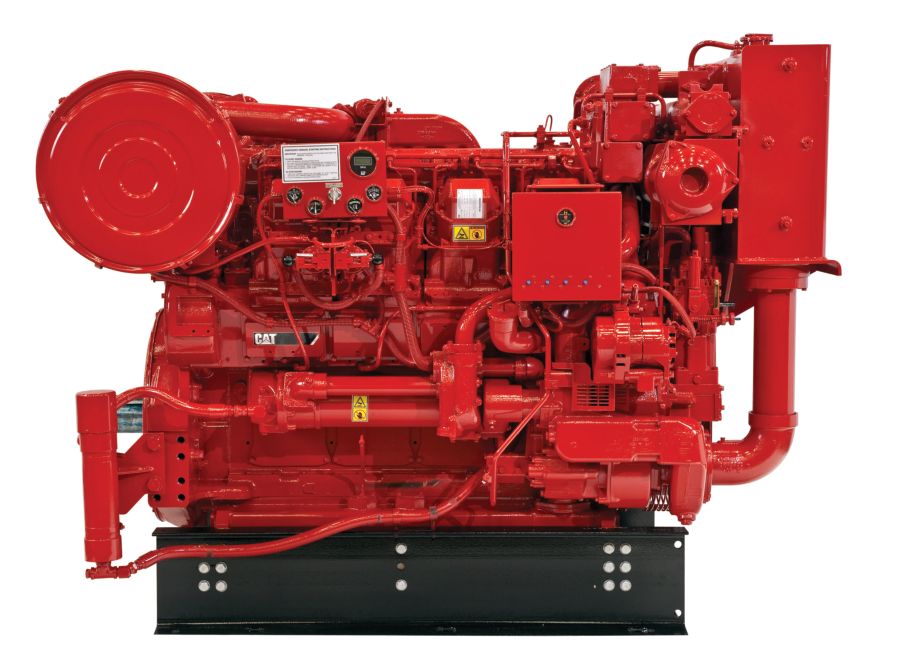

The Cat^?� 3508 Industrial Diesel Fire Pump Engine is offered in ratings ranging from 709-794 kW (950-1065 hp) @ 1460-1750 rpm. These ratings are non-certified, not FM Approved and not UL Listed. They are available for global non-regulated areas. Starting on demand is a must for a fire pump engine - always. Cat?� fire pump engines have a reputation for reliable starts and long efficient service.

Cat^?� 3508 Industrial Diesel Fire Pump Engines, with ratings: 709-794 kW (950-1065 hp) @ 1460-1750 rpm, are non-certified, not FM Approved, and not UL Listed. They are available for global non-regulated areas. Starting on demand is a must for a fire pump engine - always. Cat?� fire pump engines have a reputation for reliable starts and long efficient service. The Cat line of fire engine pumps covers a wide range of installations.

Gallery

Specifications

Specification	Value	Unit
Maximum Power	1065	hp
Rated Speed
Minimum Power	950	hp
Emissions
Engine Configuration
Bore	6.7	in
Stroke	7.5	in
Displacement	2105	in³
Compression Ratio
Aspiration
Rotation from Flywheel End
Aftertreatment
Length	92.5	in
Height	74.9	in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments	11805	lb

Standard Equipment

Air Inlet System
Control System
Cooling System
Exhaust System
Flywheels and Flywheel Housing
Fuel System
Instrumentation
Lube System
Mounting System
Power Take Off
Protection System
Starting System
General
