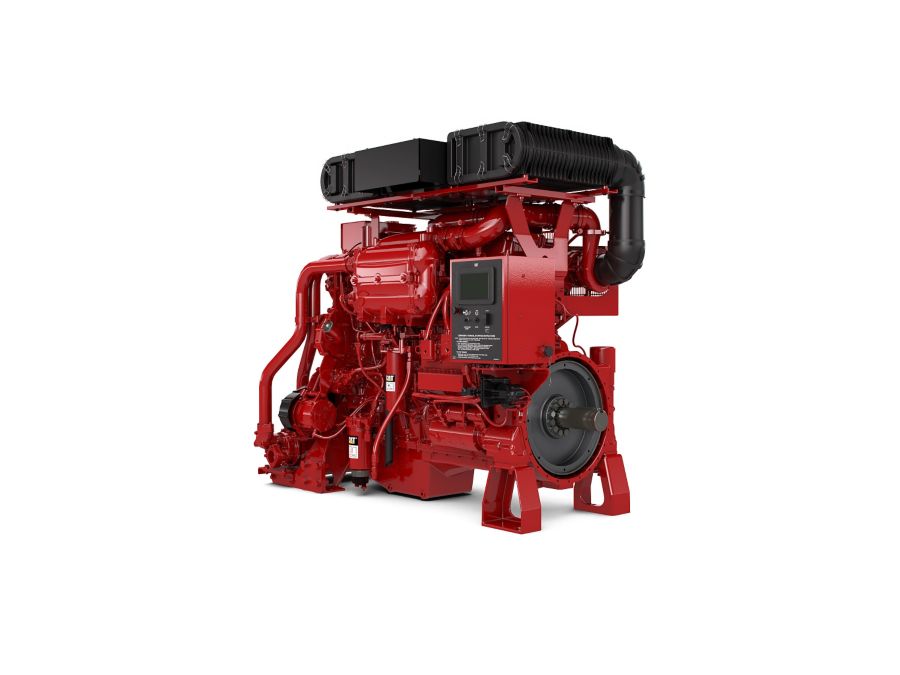

Cat?� C18 Fire Pump Engines, with ratings: 447-597 kW (600-800 hp)@ 1750-2100 rpm, meet U.S. EPA Tier 3 or U.S. EPA Tier 2 emission standards for stationary emergency fire pump engines. Rating: 522 kW (700 hp) @ 1500 rpm is Non-certified. All ratings are FM Approved and UL Listed. Starting on demand is a must for a fire pump engine - always. Cat?� fire pump engines have a reputation for reliable starts and long efficient service. The Cat line of fire engine pumps covers a wide range of installations. At 447-597 kW (600-800 hp) the C18 is the newest addition to the Cat fire pump engine line and continues the strong legacy of dependable starts and long, durable life.
Cat?� C18 Fire Pump Engines, with ratings: 447-597 kW (600-800 hp)@ 1750-2100 rpm, meet U.S. EPA Tier 3 or U.S. EPA Tier 2 emission standards for stationary emergency fire pump engines. Rating: 522 kW (700 hp) @ 1500 rpm is Non-certified. All ratings are FM Approved and UL Listed. Starting on demand is a must for a fire pump engine - always. Cat?� fire pump engines have a reputation for reliable starts and long efficient service. The C18 is the newest addition to the Cat fire pump engine line and continues the strong legacy of dependable starts and long, durable life.

Gallery

C18

Specifications

Specification Value Unit
Maximum Power 800 hp
Rated Speed
Minimum Power 600 hp
Emissions
Engine Configuration
Bore 5.7 in
Stroke 7.2 in
Displacement 1104.5 in³
Compression Ratio
Aspiration
Rotation from Flywheel End
Aftertreatment
Length 74.7 in
Width 42.6 in
Height 54.3 in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments 4306 lb

Standard Equipment

  • Air Inlet System
  • Charging System
  • Control System
  • Cooling System
  • Exhaust System
  • Flywheels and Flywheel Housing
  • Fuel System
  • Instrumentation
  • Lube System
  • Mounting System
  • Power Take-Offs
  • Protection System
  • Starting System
  • General
