3516C

Caterpillar

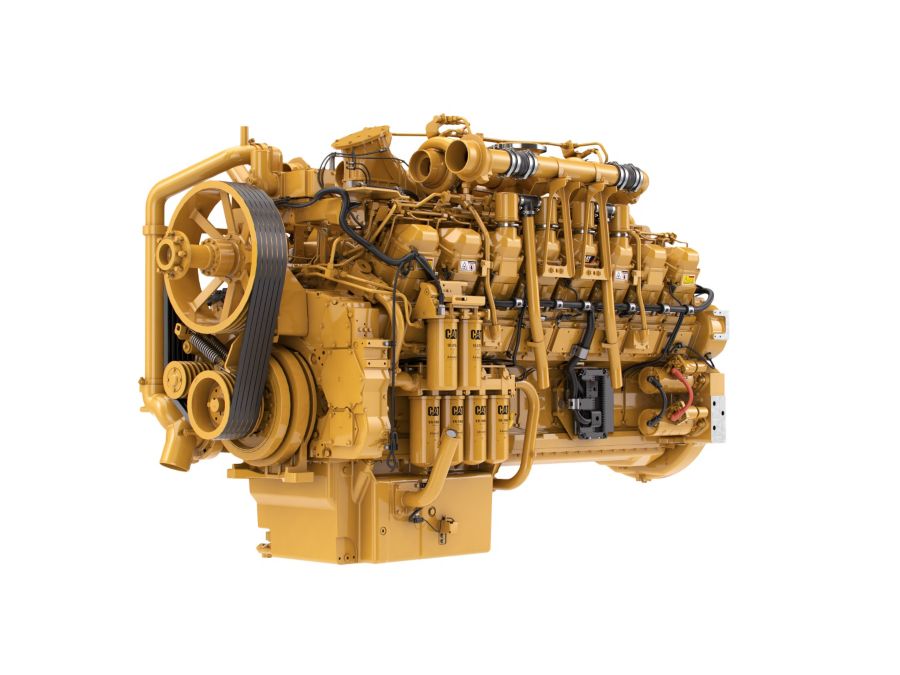

The Cat 3516C is offered at 1506 bkW (2100 bhp) @ 1750 rpm. This engine is available using EPA (U.S.) Flex provisions and for other global regulated and non-regulated areas. The 3516C offers unsurpassed performance and durability in a multitiude of industries and applications, including Bore and Drill Rigs, Chippers, Grinders, and Shredders, Cranes, Dredgers, Forestry, Material Handling, Mining and Pumps.

The Cat 3516C is offered at 1506 bkW (2100 bhp) @ 1750 rpm. This engine is available using EPA (U.S.) Flex provisions and for other global regulated and non-regulated areas. It offers unsurpassed performance and durability in a multitiude of industries and applications, including Bore and Drill Rigs, Chippers, Grinders, and Shredders, Cranes, Dredgers, Forestry, Material Handling, Mining and Pumps.

Gallery

Specifications

Specification	Value	Unit
Maximum Power	2100	hp
Maximum Torque	7563	lb-ft @ 1300 rpm
Rated Speed
Minimum Power	2100	hp
Emissions
Engine Configuration
Bore	6.7	in
Stroke	8.5	in
Displacement	4760	in³
Compression Ratio
Aspiration
Rotation from Flywheel End
Aftertreatment
Length	129.1	in
Width	60.2	in
Height	81.2	in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments	17284	lb

Standard Equipment

Air Inlet System
Control System
Cooling System
Exhaust System
Flywheels and Flywheel Housing
Fuel System
Instrumentation
Lube System
Mounting System
Power Take Off
Protection System
Starting System
General
