3516E

3516E
Caterpillar
Request a Quote Find a Location

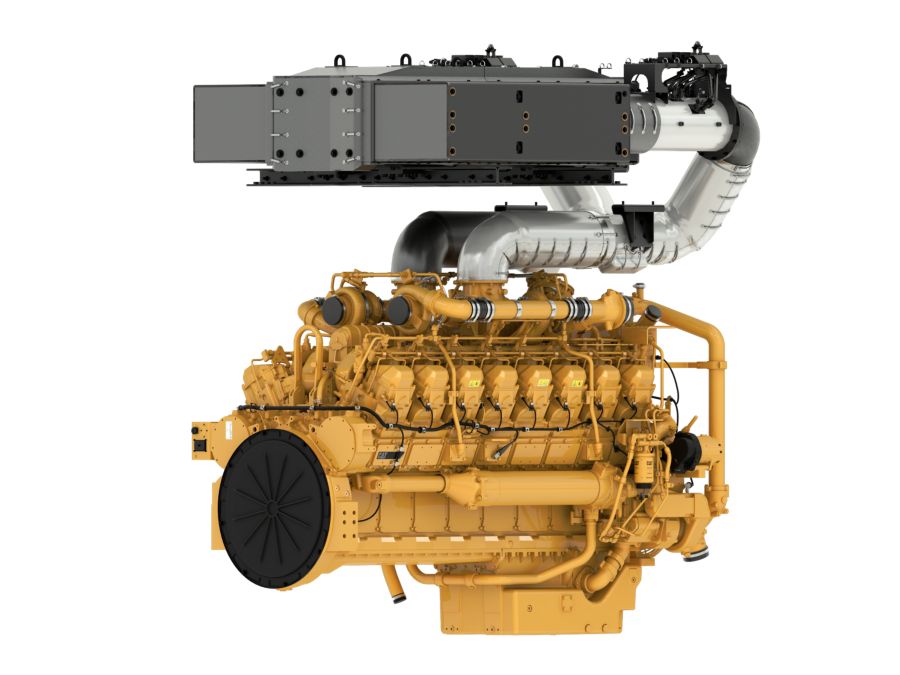

The Cat?� 3516E industrial diesel engine is offered at a continuous rating of 1566 kW (2100 hp) @ 1650 rpm and is designed for applications that require continuous heavy-duty service. These engines are capable of being operated at maximum power and speed up to 100% of the time without interuption or load cycling.
The Cat?� 3516E industrial diesel engine is offered at a continuous rating of 1566 kW (2100 hp) @ 1650 rpm and is designed for applications that require continuous heavy-duty service. These engines are capable of being operated at maximum power and speed up to 100% of the time without interuption or load cycling.

The 3516E is certified to meet EU Stage V, U.S. EPA Tier 4 Final, and California Air Regulations Board (CARB) standards, providing a single solution for higher regulated countries and simplifying installations for OEMs.

The 3516E offers unsurpassed performance and durability in a wide array of industries and applications, including shredders, chippers, grinders, bore and drill rigs, and pumps as well as other applications in forestry, general industrial, material handling, and mining.

Gallery

3516E

Specifications

Specification Value Unit
Maximum Power 2100 hp
Maximum Torque 8275 lb-ft @ 1200 rpm
Rated Speed
Minimum Power 2100 hp
Emissions
Engine Configuration
Bore 6.7 in
Stroke 8.5 in
Displacement 4760 in³
Compression Ratio
Aspiration
Combustion System
Rotation from Flywheel End
Aftertreatment
Length 122.2 in
Width 63.6 in
Height 83 in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments 18025 lb
Length 92.5 in
Width 79.1 in
Height 31.9 in
Weight 2378 lb

Standard Equipment

  • Air Inlet System
  • Control System
  • Exhaust System
  • Cooling System
  • Flywheels and Flywheel Housing
  • Fuel System
  • Lube System
  • General
