3606

Caterpillar

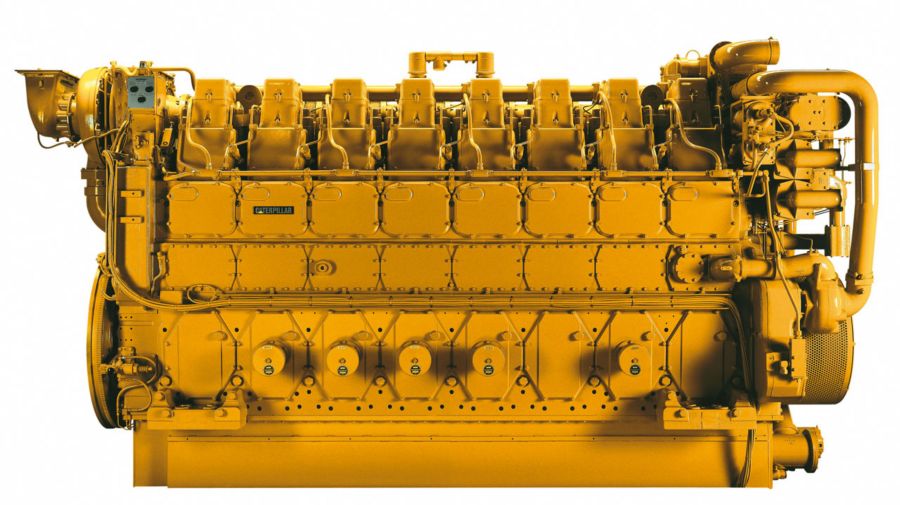

For your largest power needs in any environment, Cat^?� 3606 Industrial Diesel Engines offer the unsurpassed performance and durability your customers need to keep their industrial applications and operations running. They deliver high power output, proven reliability and excellent fuel efficiency. These engines maintain low operating costs to keep your customers profitable for years to come. Industries powered by 3606 engines include Construction, Forestry, General Industrial, Material Handling and Mining. These 3606 engines, with ratings: 1490-1850 bkW (1998-2481 bhp) @ 750-1000 rpm, are non-certified and available for global non-regulated areas.

The Cat^?� 3606 Industrial Diesel Engine is offered in ratings ranging from 1490-1850 bkW (1998-2481 bhp) @ 750-1000 rpm. These ratings are non-certified and available for global non-regulated areas. Industries powered by 3606 engines include Construction, Forestry, General Industrial, Material Handling and Mining.

Gallery

Specifications

Specification	Value	Unit
Maximum Power	2481	hp
Maximum Torque	13424	lb-ft @ 820 rpm
Rated Speed
Minimum Power	1998	hp
Emissions
Engine Configuration
Bore	11	in
Stroke	11.8	in
Displacement	6764	in³
Compression Ratio
Aspiration
Rotation from Flywheel End
Aftertreatment
Length	157	in
Width	69	in
Height	103	in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments	34500	lb

Standard Equipment

Air Inlet System
Control System
Cooling System
Exhaust System
Flywheels and Flywheel Housing
Fuel System
Instrumentation
Lube System
Mounting System
Power Take Off
Protection System
Starting System
General
