Caterpillar

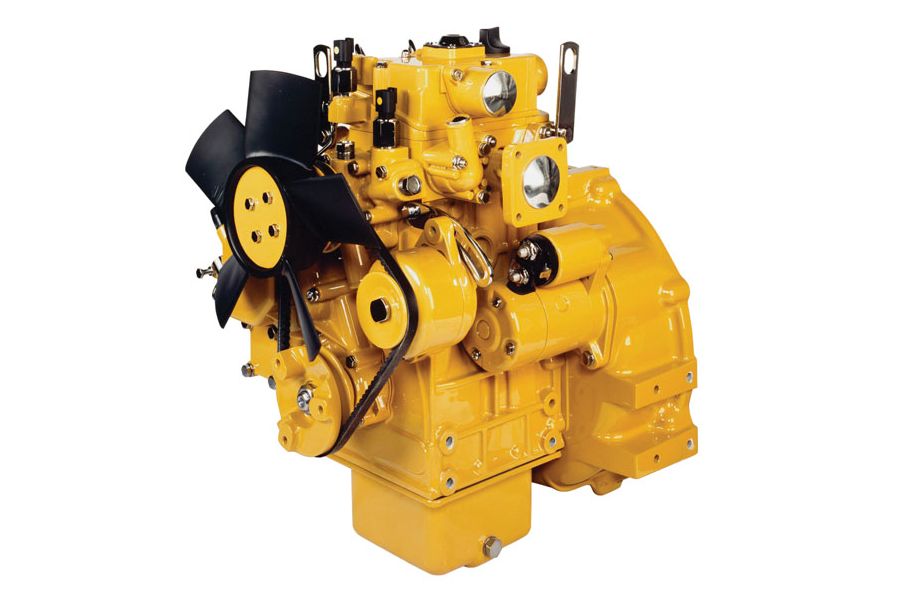

Cat?�C0.5 Industrial Diesel Engines deliver impressive performance throughout a wide speed range with exceptional power density. Their ultra-compact package size and extensive choice of options ensures these engines are ideal for a wide range of small, off road applications. Single-side servicing improves ease of maintenance and lowers overall owner operating costs. Industries and applications powered by C0.5 engines include Auxiliary Power Units, Compactors/Rollers, Mobile Earthmoving Equipment, Mobile Light Towers and Turf and Landscaping. C0.5 engines, with ratings: 8.2-10.2 bkW (11.0-13.7 bhp) @ 2800-3600 rpm are available using U.S. EPA Flexibility. They are available for Europe and, depending on applicable emission standards, may be introduced in other regulated and non-regulated areas.
The C0.5 Industrial Diesel Engine is offered in ratings ranging from 8.2-10.2 bkW (11.0-13.7 bhp) @ 2800-3600 rpm. These ratings are available for Europe and, depending on applicable emission standards, may be introduced in other regulated and non-regulated areas. Industries and applications powered by C0.5 engines include Auxiliary Power Units, Compactors/Rollers, Mobile Earthmoving Equipment, Mobile Light Towers and Turf and Landscaping.
Gallery
Specifications
| Specification |
Value |
Unit |
| Maximum Power |
13.7 |
hp |
| Maximum Torque |
22 |
lb-ft @ 2600 rpm |
| Rated Speed |
|
|
| Minimum Power |
11 |
hp |
| Emissions |
|
|
| Engine Configuration |
|
|
| Bore |
2.6 |
in |
| Stroke |
2.8 |
in |
| Displacement |
31 |
in³ |
| Compression Ratio |
|
|
| Aspiration |
|
|
| Combustion System |
|
|
| Rotation from Flywheel End |
|
|
| Aftertreatment |
|
|
| Length |
16 |
in |
| Width |
14.6 |
in |
| Height |
20.6 |
in |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments |
126 |
lb |
Standard Equipment
- Air Inlet System
- Control System
- Cooling System
- Flywheel and Flywheel Housing
- Fuel System
- Lube System
- General
