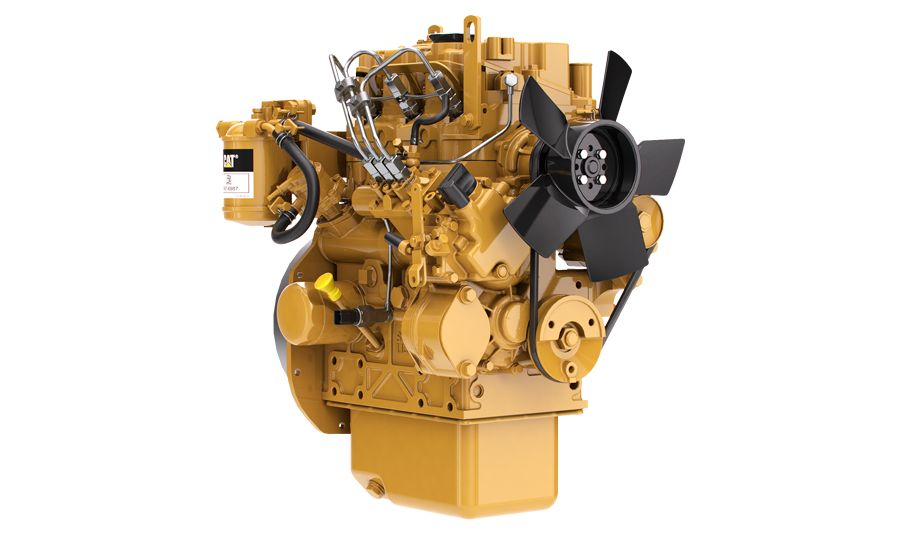

The C1.1 and C1.1T are indirect injection industrial diesel engines meeting EU Stage V emission standards without the need for electronic control, aftertreatment or exhaust gas recirculation. Available as naturally aspirated or turbocharged for improved low speed torque, we also offer a range of factory configurable options to minimize the cost of machine development and of manufacturing if equipped with e-controller
The C1.1 and C1.1T are indirect injection industrial diesel engines meeting EU Stage V emission standards without the need for electronic control, aftertreatment or exhaust gas recirculation. Available as naturally aspirated or turbocharged for improved low speed torque, we also offer a range of factory configurable options to minimize the cost of machine development and of manufacturing if equipped with e-controller

Brochures and Spec Sheets

Gallery

C1.1

Specifications

Specification Value Unit
Maximum Power 24.6 hp
Maximum Torque 63.4 lb-ft @ 1600 rpm
Rated Speed
Minimum Power 24.6 hp
Emissions
Engine Configuration
Bore 3 in
Stroke 3.2 in
Displacement 67.1 in³
Compression Ratio
Aspiration
Combustion System
Rotation from Flywheel End
Total Lubricating Oil Capacity 1.16 gal (US)
Length 19.6 in
Width 20.1 in
Height 23.1 in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments 238 lb

Standard Equipment

  • Air inlet system
  • Air Inlet System
  • Control System
  • Cooling System
  • Flywheel and Flywheel Housing
  • Fuel System
  • Lube System
  • Power Take Off (PTO)
  • General
