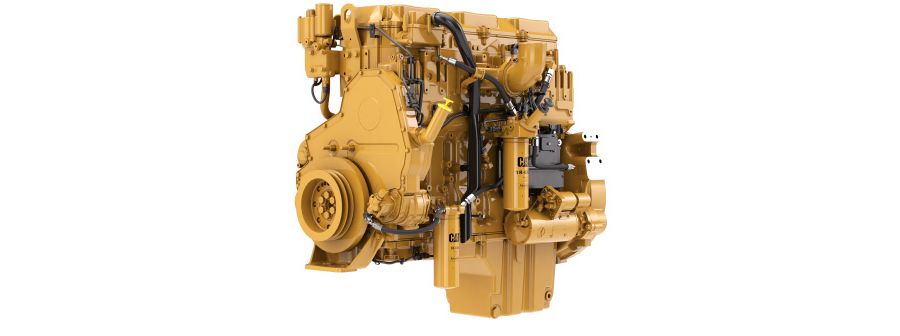

C13

Cat

The Cat® C13 industrial diesel engine is offered in ratings ranging from 309-328 kW (414-440 hp) and emits equivalent to U.S. EPA Tier 2.

Brochures and Spec Sheets

Specification	Value	Unit
Maximum Power	440	hp
Maximum Torque	1482	lb-ft @ 1400 rpm
Rated Speed
Minimum Power	414	hp
Emissions
Number of Cylinders
Displacement	762.8	in³
Aspiration
Bore	5.1	in
Stroke	6.2	in
Combustion System
Compression Ratio
Aftertreatment
Total Lubricating Oil Capacity	10.6	gal (US)
Rotation from Flywheel End
Cooling System
Length	51	in
Width	41	in
Height	47	in
Dry Weight	2509	lb
Wet Weight	2583	lb
Note 1
