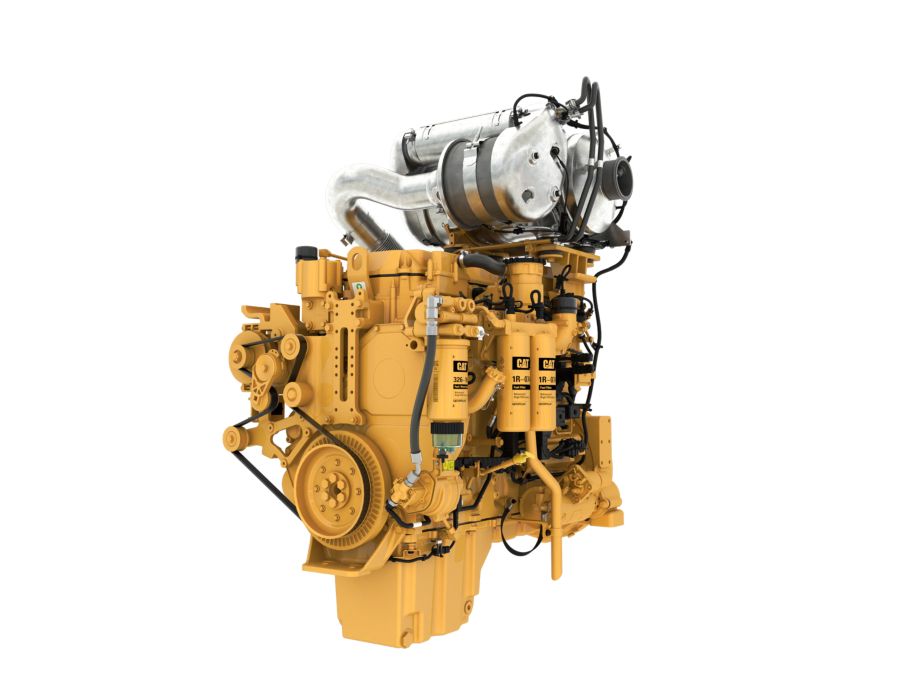

The Cat?� C13B engine supplies remarkable power and torque in a smaller, lighter engine package. With a aftertreatment that is 65% smaller and 54% lighter than its current equivalent and over 34 kW/L of power density, the C13B is designed to allow OEMs to downsize their engine platforms, lower installation costs and maximize uptime by providing long life in the toughest applications.
The Cat?� C13B engine supplies remarkable power and torque in a smaller, lighter engine package. With a aftertreatment that is 65% smaller and 54% lighter than its current equivalent and over 34 kW/L of power density, the C13B is designed to allow OEMs to downsize their engine platforms, lower installation costs and maximize uptime by providing long life in the toughest applications.

Brochures and Spec Sheets

Gallery

C13B C13B C13B C13B C13B

Specifications

Specification Value Unit
Maximum Power 577 hp
Maximum Torque 1943 lb-ft @ 1400 rpm
Rated Speed
Minimum Power 456 hp
Emissions
Engine Configuration
Bore 5.1 in
Stroke 6.2 in
Displacement 762.8 in³
Compression Ratio
Aspiration
Combustion System
Rotation from Flywheel End
Aftertreatment
Length 50 in
Width 39 in
Height 45 in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments 2480 lb
Length 35.3 in
Width 31.8 in
Height 18.1 in
Weight 220 lb

Standard Equipment

  • Air Inlet System
  • Control System
  • Cooling System
  • Flywheels and Flywheel Housing
  • Fuel System
  • Lube System
  • Power Take Off (PTO)
  • General
