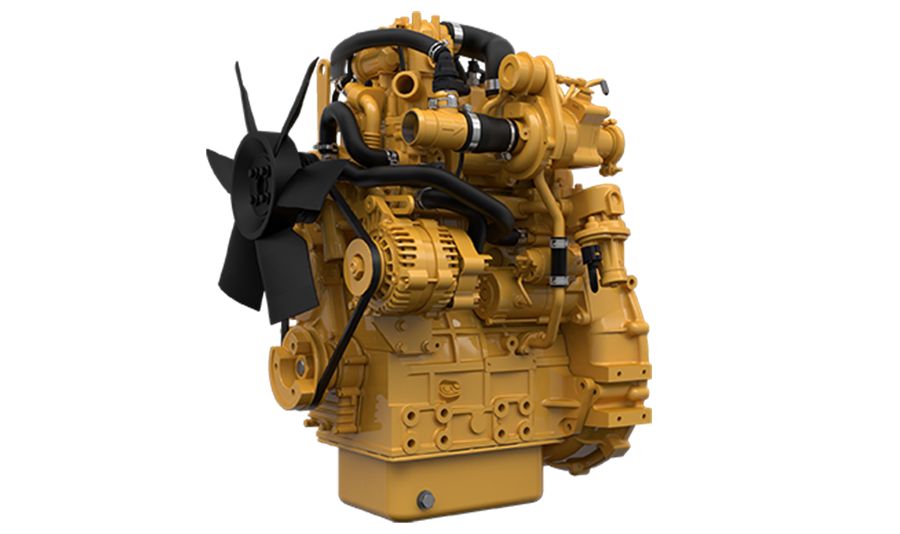

Cat® C1.7 Industrial Diesel deliver impressive performance throughout a wide speed range with exceptional power density. Their ultra-compact package size and extensive choice of options ensures these engines are ideal for a wide range of small, off road applications. Single-side servicing improves ease of maintenance and lowers overall owner operating costs. Industries and applications powered by C1.7 engines include: Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Compactors/Rollers, Construction, Forestry, General Industrial, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Light Towers, Pumps, Trenchers, Turf and Landscaping and Underground Mining Equipment. C1.7 engines, with ratings: 23.6 & 26.1 bkW (31.6 & 35 bhp) @ 2400 & 2600 rpm, meet U.S. EPA Tier 4 Final emission standards. They are available using U.S. EPA Flexibility, and for other regulated and non-regulated areas.
The Cat® C1.7 Industrial Diesel Engine is offered in the following ratings: 23.6 & 26.1 bkW (31.6 & 35 bhp) @ 2400 & 2600 rpm. These ratings meet U.S. EPA Tier 4 Final emission standards. Industries and applications powered by C1.7 engines include: Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Compactors/Rollers, Construction, Forestry, General Industrial, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Light Towers, Pumps, Trenchers, Turf and Landscaping and Underground Mining Equipment.
Gallery
Specifications
| Specification |
Value |
Unit |
| Maximum Power |
23.8 |
hp |
| Maximum Torque |
92 |
lb-ft @ 1800 rpm |
| Rated Speed |
|
|
| Minimum Power |
23.8 |
hp |
| Emissions |
|
|
| Engine Configuration |
|
|
| Bore |
3.3 |
in |
| Stroke |
3.9 |
in |
| Displacement |
103.7 |
in³ |
| Compression Ratio |
|
|
| Aspiration |
|
|
| Combustion System |
|
|
| Rotation from Flywheel End |
|
|
| Aftertreatment |
|
|
| Total Lubricating Oil Capacity |
1.58 |
gal (US) |
| Length |
22.5 |
in |
| Width |
19.7 |
in |
| Height |
25.3 |
in |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments |
368 |
lb |
| Length |
22.5 |
in |
| Diameter |
6.1 |
in |
| Weight |
12.8 |
lb |
Standard Equipment
- Air Inlet System
- Control System
- Cooling System
- Flywheel & Flywheel Housing
- Fuel System
- Lube System
- Power Take Off (PTO)
- General
- U.S. EPA Tier 4 Final Aftertreatment/Clean Emissions Control Equipment
