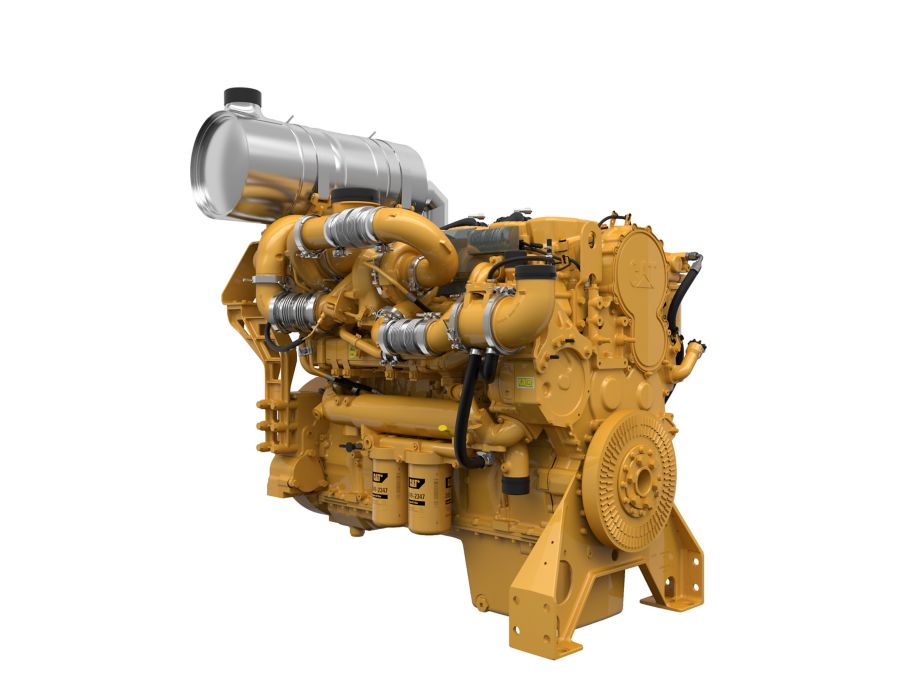

This Cat® C18 engine variant equipped with a serial twin turbocharged-aftercooled system is capable of achieving power between 563-597 kW (755-800 hp) @ 1800 rpm while meeting EU Stage V emission standards.
This Cat® C18 engine variant equipped with a serial twin turbocharged-aftercooled system is capable of achieving power between 563-597 kW (755-800 hp) @ 1800 rpm while meeting EU Stage V emission standards.

Brochures and Spec Sheets

Gallery

C18

Specifications

Specification Value Unit
Maximum Power 800 hp
Maximum Torque 2736 lb-ft @ 1300 rpm
Rated Speed
Minimum Power 755 hp
Emissions
Number of Cylinders
Displacement 1104.5 in³
Aspiration
Bore 5.7 in
Stroke 7.2 in
Combustion System
Compression Ratio
Aftertreatment
Rotation from Flywheel End
Cooling System
Length 61 in
Width 45 in
Height 53 in
Dry Weight 3875 lb
Wet Weight 3945 lb
Note 1
