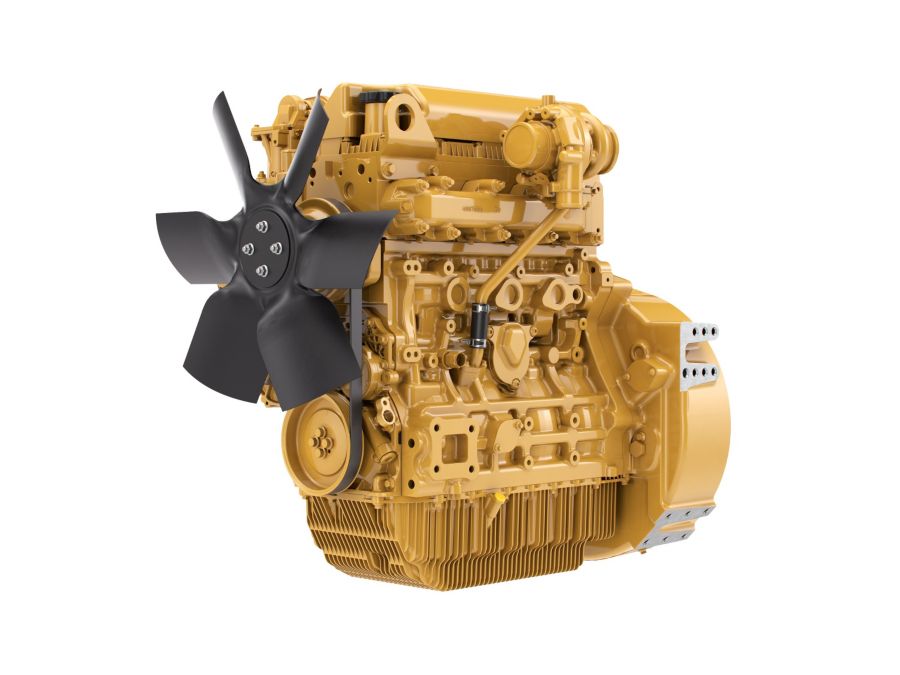

C2.8
The Cat C2.8 LRC Industrial Diesel Engines offer the perfect balance of compact size, reliability, and performance. This engine is offered in ratings ranging up to 55 bkW (74 bhp) @ 2500 rpm. The C2.8 is designed to meet the needs of many industries and applications, including agricultural tractors, aerial lifts, aircraft ground support, bore/drill rigs, chippers/grinders, compactors/rollers, compressors, forestry, irrigation equipment, material handling, mining, earthmoving equipment, paving equipment, pumps, fruit harvesters equipment, turf and underground mining equipment.
The Cat C2.8 LRC Industrial Diesel Engines offer the perfect balance of compact size, reliability, and performance. This engine is offered in ratings ranging up to 55 bkW (74 bhp) @ 2500 rpm. The C2.8 is designed to meet the needs of many industries and applications, including agricultural tractors, aerial lifts, aircraft ground support, bore/drill rigs, chippers/grinders, compactors/rollers, compressors, forestry, irrigation equipment, material handling, mining, earthmoving equipment, paving equipment, pumps, fruit harvesters equipment, turf and underground mining equipment.
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Maximum Power | 74 | hp |
| Maximum Torque | 221 | lb-ft @ 1600 rpm |
| Rated Speed | ||
| Minimum Power | 67 | hp |
| Emissions | ||
| Engine Configuration | ||
| Bore | 3.5 | in |
| Stroke | 4.3 | in |
| Displacement | 171 | in³ |
| Compression Ratio | ||
| Aspiration | ||
| Combustion System | ||
| Rotation from Flywheel End | ||
| Aftertreatment | ||
| Length | 24.9 | in |
| Width | 21.2 | in |
| Height | 30.9 | in |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 705 | lb |
Standard Equipment
- Air Inlet System
- Control System
- Flywheels and Flywheel Housing
- Fuel System
- Lube System
- General
