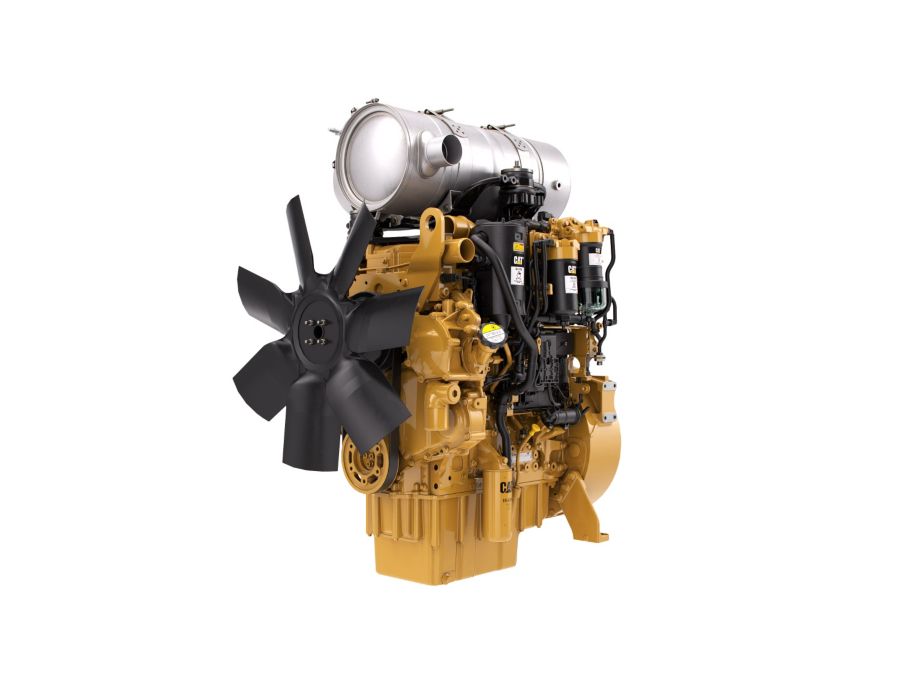

C4.4
The Cat® C4.4 Industrial Diesel Engine is offered in ratings ranging from 82-150 bkW (109-200 bhp) @ 2200 rpm, which meet U.S. EPA Tier 4 Final, EU Stage V emission standards. Industries and applications powered by C4.4 engines include: Agriculture, Aerial Lifts, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Feller Bunchers, Forestry, Forklifts, General Industrial, Harvesters, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Sweepers, Paving Equipment, Pumps, Skidders, Specialty Ag Equipment, Sprayers, Trenchers, Turf and Landscaping and Underground Mining Equipment.
Cat® C4.4 Industrial Diesel Engines offer the perfect balance of durability, fuel efficiency and low emissions. Extensively tested on the job, these engines use a range of common rail fuel systems and advanced control systems to deliver maximum uptime in the harshest environment. They have proven they can handle the toughest applications and deliver superior performance that exceeds the expectations of the most demanding users. Industries and applications powered by C4.4 engines include: Agriculture, Aerial Lifts, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Feller Bunchers, Forestry, Forklifts, General Industrial, Harvesters, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Sweepers, Paving Equipment, Pumps, Skidders, Specialty Ag Equipment, Sprayers, Trenchers, Turf and Landscaping and Underground Mining Equipment.
Brochures and Spec Sheets
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Maximum Power | 200 | hp |
| Maximum Torque | 609 | lb-ft @ 1400 rpm |
| Rated Speed | ||
| Minimum Power | 109 | hp |
| Emissions | ||
| Engine Configuration | ||
| Bore | 4.1 | in |
| Stroke | 5 | in |
| Displacement | 268.5 | in³ |
| Compression Ratio | ||
| Aspiration | ||
| Combustion System | ||
| Rotation from Flywheel End | ||
| Aftertreatment | ||
| Length | 32.4 | in |
| Width | 29.6 | in |
| Height | 35.3 | in |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 1180 | lb |
| Length | 26.5 | in |
| Width | 24.5 | in |
| Height | 17.8 | in |
| Weight | 143.3 | lb |
Standard Equipment
- Air Inlet System
- Control System
- Cooling System
- Flywheels and Flywheel Housing
- Fuel System
- Lube System
- Power Take Off
- General
- U.S. EPA Tier 4 Final, EU Stage V Aftertreatment/ Clean Emissions Control Equipment
