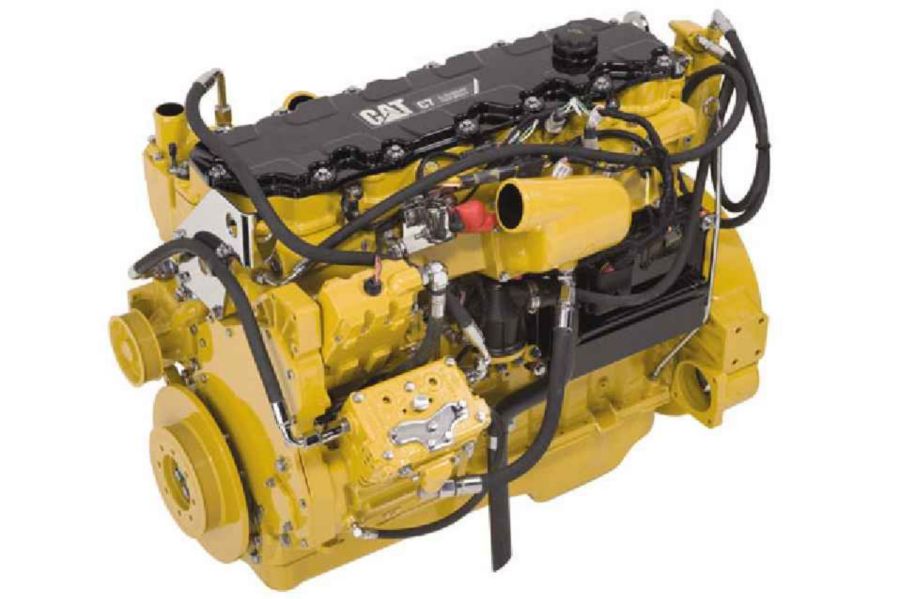

C7

C7
Caterpillar
Demanding conditions, applications and environments make Cat?� C7 Industrial Diesel Engines the perfect solution for your severe duty equipment. With decades of diesel engine innovation and expertise behind these engines, they deliver the low operating costs and legendary Cat reliability and durability that give you a powerful advantage. More importantly, they're backed by the world-class Cat dealer network ready to service and support every Cat industrial engine. Industries and applications powered by C7 engines include Agriculture, Ag Tractors, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Combines/Harvesters, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Feller Bunchers, Forestry, Forklifts, General Industrial, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Sweepers, Paving Equipment, Pumps, Skidders, Specialty Ag Equipment, Sprayers, Trenchers and Underground Mining Equipment. The C7 engines, with ratings: 168-224 bkW (225-300 bhp) @ 1800-2200 rpm, meet China Stage II, EPA Tier 3 equivalent, EU Stage IIIA equivalent emission standards. They are available using U.S. EPA and EU Flexibility, and for other regulated and non-regulated areas.
The Cat?� C7 Industrial Diesel Engine is offered in ratings ranging from 168-224 bkW (225-300 bhp) @ 1800-2200 rpm. These ratings meet China Stage II, EPA Tier 3 equivalent, and EU Stage IIIA equivalent emission standards. Industries and applications powered by C7 engines include Agriculture, Ag Tractors, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Combines/Harvesters, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Feller Bunchers, Forestry, Forklifts, General Industrial, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Sweepers, Paving Equipment, Pumps, Skidders, Specialty Ag Equipment, Sprayers, Trenchers and Underground Mining Equipment.

Gallery

Specifications

Specification Value Unit
Maximum Power 300 hp
Rated Speed
Minimum Power 225 hp
Emissions
Engine Configuration
Bore 4.3 in
Stroke 5 in
Displacement 442 in³
Compression Ratio
Aspiration
Combustion System
Rotation from Flywheel End
Aftertreatment
Length 41.5 in
Width 29.8 in
Height 40.6 in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments 1296 lb

Standard Equipment

  • Air Inlet System
  • Control System
  • Cooling System
  • Exhaust System
  • Flywheels and Flywheel Housing
  • Fuel System
  • Lube System
  • General
