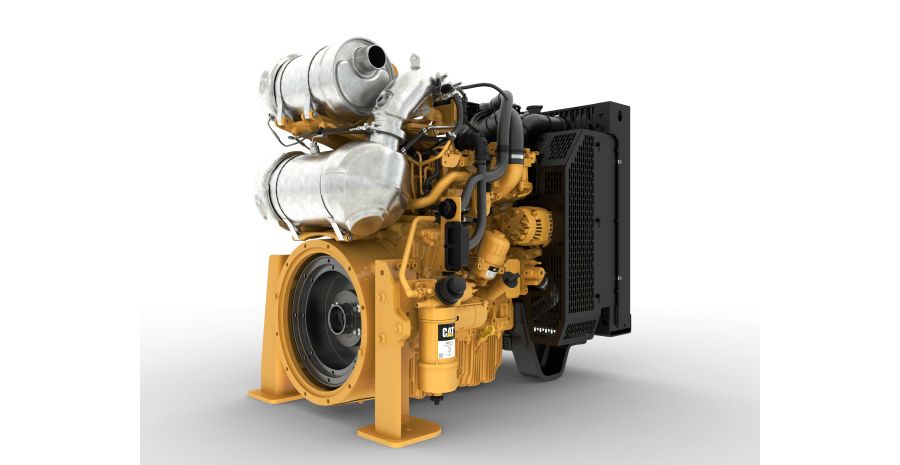

The C2.8 and C3.6 IPU engines are common rail direct injection engines with a turbocharged or turbocharged aftercooled air system meeting EU Stage V, U.S. EPA Tier 4 Final and Japan 2014 (Tier 4 Final) emission standards. For ease of installation, the IPU provides full aftertreatment mounting, an integrated cooling system, a full wiring harness and mounting for the ECM and fuel filter.
The C2.8 and C3.6 IPU engines are common rail direct injection engines with a turbocharged or turbocharged aftercooled air system meeting EU Stage V, U.S. EPA Tier 4 Final and Japan 2014 (Tier 4 Final) emission standards. For ease of installation, the IPU provides full aftertreatment mounting, an integrated cooling system, a full wiring harness and mounting for the ECM and fuel filter.

Designed to meet EU Stage V/U.S. EPA Tier 4 Final/ Japan 2014 (Tier 4 Final) emission standards.

Brochures and Spec Sheets

Gallery

C3.6

Specifications

Specification Value Unit
Maximum Power 134 hp
Maximum Torque 406 lb-ft @ 1500 rpm
Rated Speed
Minimum Power 94 hp
Emissions
Number of Cylinders
Cycle
Bore 3.85 in
Stroke 4.72 in
Displacement 219.7 in³
Compression Ratio
Aspiration
Combustion System
Rotation from Flywheel End
Aftertreatment
Cooling System
Length 46.3 in
Width 31.8 in
Height 40.8 in
Dry Weight 1214 lb
Note 1

Standard Equipment

  • Aftertreatment Equipment
  • Air System
  • Cooling System
  • Electrical and Electronics
  • Flywheel and Flywheel Housing
  • Fuel System
  • General
  • Oil System
  • Power Take-Off (PTO)
