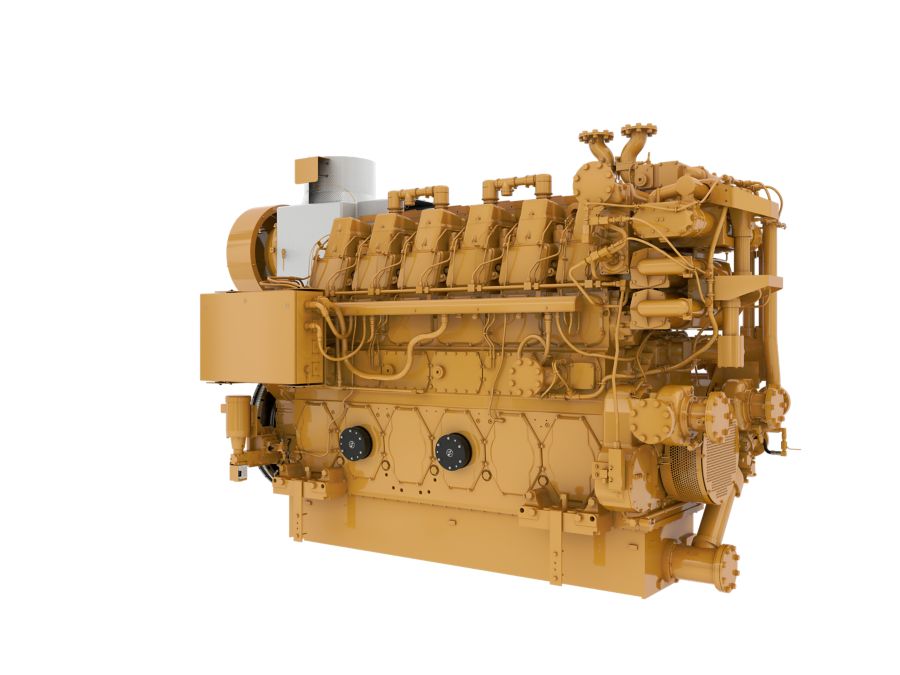

C280-6
The Cat® C280 commercial propulsion engine series is engineered for high-utilization workboat applications where power, durability, and uptime matter most. Delivering up to 23% more power with increased durability, the C280 series combines high power density, proven heavy-duty build, and long service intervals to help operators move more, pull harder, and stay working longer, day after day.
The Cat® C280 commercial propulsion engine series is engineered for high-utilization workboat applications where power, durability, and uptime matter most. Delivering up to 23% more power with increased durability, the C280 series combines high power density, proven heavy-duty build, and long service intervals to help operators move more, pull harder, and stay working longer, day after day.
Brochures and Spec Sheets
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Power Range | ||
| Application | ||
| Speed Range | ||
| Emissions | ||
| Aspiration | ||
| Bore | 11.0 | in |
| Stroke | 11.8 | in |
| Displacement | 6773.0 | in³ |
| Rotation from Flywheel End | ||
| Configuration | ||
| Dry Weight | 34496.0 | lb |
| Length | 158.0 | in |
| Width | 71.0 | in |
| Height | 108.0 | in |
Standard Equipment
- General
- Air Inlet System
- Control System
- Cooling System
- Exhaust System
- Fuel System
- Instrumentation
- Lube System
- Lube Systems
- Protection System
- Protection Ssystem
Optional Equipment
- Fuel System
- Lube System
- Protection System
