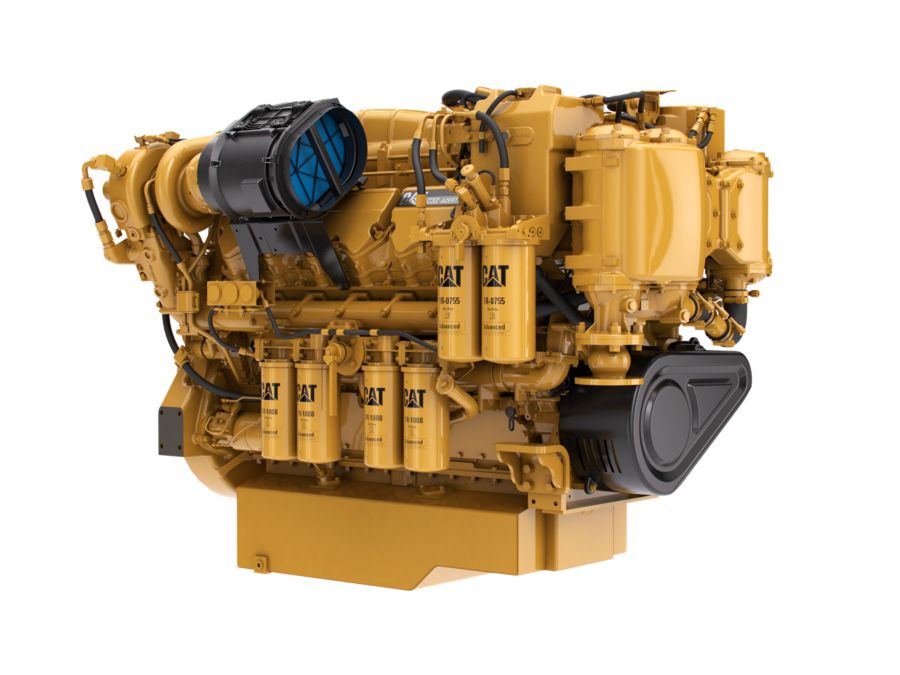

C32
The C32 marine propulsion engine is available at ratings that meet EPA Tier 3, EPA Tier 4, and IMO II/III, and EU Stage 5 emissions regulations. It has a separate circuit aftercooling system (SCAC) for A through C ratings and a seawater aftercooling system (SWAC) for D and E ratings. The C32 has several ratings with Wide Operating Speed Range (WOSR) and extended oil change intervals. Other benefits include proven engine operating history and performance iron with thousands of validation testing hours for quality and durability. The C32 marine engine is supported by the extensive Cat global dealer network and standard warranty.
The C32 marine propulsion engine is available at ratings that meet EPA Tier 3, EPA Tier 4, and IMO II/III, and EU Stage 5 emissions regulations. It has a separate circuit aftercooling system (SCAC) for A through C ratings and a seawater aftercooling system (SWAC) for D and E ratings. The C32 has several ratings with Wide Operating Speed Range (WOSR) and extended oil change intervals. Other benefits include proven engine operating history and performance iron with thousands of validation testing hours for quality and durability. The C32 marine engine is supported by the extensive Cat global dealer network and standard warranty.
Brochures and Spec Sheets
- C32 ACERT SCAC Tier 3 Propulsion Engine 1300 bhp WOSR 1800-2100 rpm, 1450 bhp WOSR 2100-2300 rpm
- C32 Marine Propulsion Engine (IMO II) 969 bkW (1299 bhp) @ 1800-2100 rpm
- C32 Marine Propulsion Engine (IMO II) 492 bkW (660 bhp) @ 1800 rpm
- C32 Marine Propulsion Engine (IMO II) 1081 bkW (1450 bhp) @ 2300 rpm
- C32 Marine Propulsion Engine (IMO II) 970 bkW (1300 bhp) @ 1800 rpm
- C32 Marine Propulsion Engine (IMO II) 895 bkW (1200 bhp) @ 2000 rpm
- C32 Marine Propulsion Engine (IMO II) 970 bkW (1300 bhp) @ 2100 rpm
- C32 Marine Propulsion Engine (IMO II) 708 bkW (950 bhp) @ 1600 rpm
- C32 Marine Propulsion Engine (US EPA Tier 4 / IMO III) 895 bkW @ 1800-2100 rpm
- C32 Marine Propulsion Engine (US EPA Tier 4 / IMO III) 970 bkW @ 1800-2100 rpm
- C32 Marine Propulsion Engine (US EPA Tier 4 / IMO III) 1081 bkW @ 2050-2150 rpm
- IMO II/III Solutions Data Sheet
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Power Range | ||
| Speed Range | ||
| Emissions | ||
| Aspiration | ||
| Bore | 5.71 | in |
| Stroke | 6.38 | in |
| Displacement | 1959.0 | in³ |
| Rotation from Flywheel End | ||
| Configuration | ||
| Maximum Height | 62.5 | in |
| Minimum Length | 77.8 | in |
| Minimum Height | 60.9 | in |
| Maximum Width | 60.17 | in |
| Maximum Length | 83.5 | in |
| Minimum Width | 60.17 | in |
Standard Equipment
- AIR INLET SYSTEM
- CONTROL SYSTEM
- COOLING SYSTEM
- EXHAUST SYSTEM
- FLYWHEELS & FLYWHEEL HOUSINGS
- FUEL SYSTEM
- LUBE SYSTEM
- MOUNTING SYSTEM
- POWER TAKE-OFFS
- GENERAL
Optional Equipment
- Air Inlet Systems
- Charging Systems
- Cooling System
- Exhaust System
- Fuel System
- Instrumentation
- Lube System
- Protection System
- Starting System
- Packing
- Mounting System
- Power Take-Offs
- GENERAL
- CONTROL SYSTEM
