CG137-8

Caterpillar

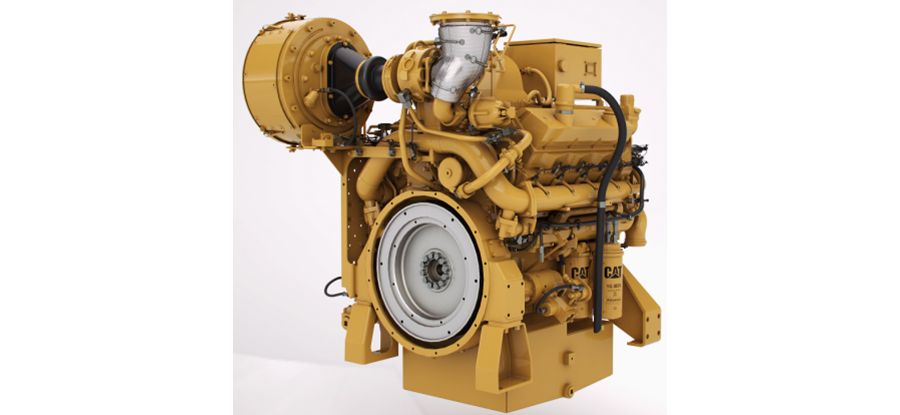

Tough and durable, with field-proven head design to maximize time between overhauls. CG137 engines are equipped with ADEM A4 technology that brings performance, uptime, and low operating cost to your operation. CG137 engines meet the most demanding continuous duty gas compression applications with virtually no unscheduled downtime. Ideal applications for CG137-8 engines include gas lift, gas gathering, and wellhead gas compression. Cat CG137-8 gas engine. Ratings: 298 bkW (400 bhp) @ 1800 rpm are NSPS site compliant capable with Caterpillar or Customer supplied AFR controls and aftertreatment.

Brochures and Spec Sheets

CG137-8 Engine Spec Sheet

Gallery

Specifications

Specification	Value	Unit
Maximum Rating	400.0	BHP
Rated Speed	1800	rpm
Emissions
Minimum Rating	400.0	BHP
Compression Ratio
Aspiration
Rotation from Flywheel End
Flywheel and Flywheel Housing
Flywheel Teeth
Displacement	1099.0	in³
Oil Change Interval
Ignition, Protection
Air/Fuel Ratio Control
Stroke	6.0	in
Bore	5.4	in
Cooling System	14.5	gal (US)
Lube Oil System - Refill	39.0	gal (US)
Length	64	in
Width	56.8	in
Height	69.2	in
Weight - Dry	4850	lb

Standard Equipment

Air Inlet System
Control System
Cooling System
Exhaust System
Flywheels & Flywheel Housings
Fuel System
Lube System
Protection System
General

Optional Equipment

Charging Alternator
Exhaust System
Instrumentation
Starting System
Fuel System
Air Inlet System
