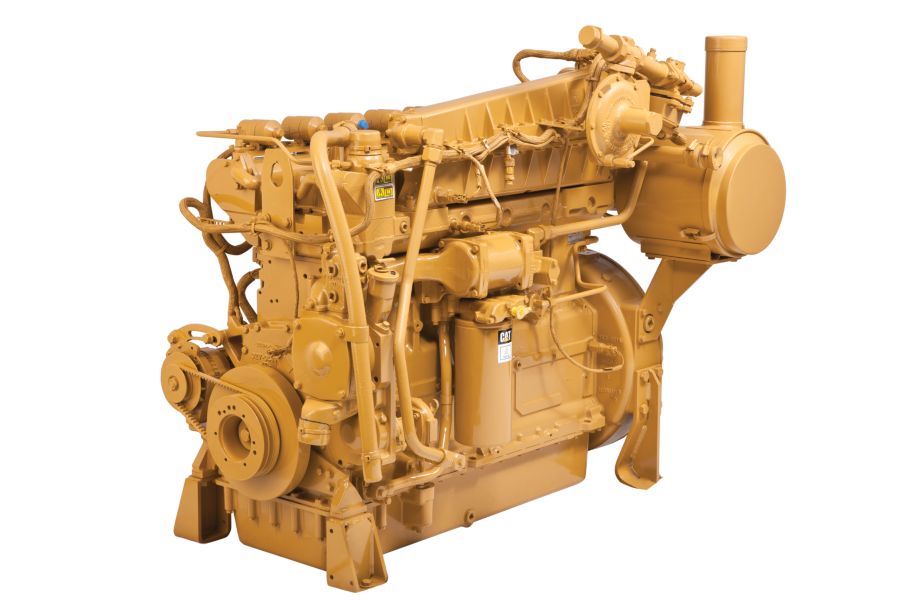

G3306B

Caterpillar

Tough and durable, built on the industry-standard G3300 platform and equipped with technology that brings performance, uptime, and low operating cost to your operation. G3306B engines meet the most demanding continuous duty gas compression applications with virtually no unscheduled downtime. Ideal applications for G3306B engines include gas lift, gas gathering, and wellhead gas compression. Cat G3306B gas engine. Ratings: 108-157 bkW (145-211 bhp) @ 1800 rpm are NSPS site compliant capable with Caterpillar or customer-provided air-fuel ratio control and aftertreatment.

Brochures and Spec Sheets

G3306 Spec Sheet

Gallery

Specifications

Specification	Value	Unit
Maximum Rating	211.0	BHP
Rated Speed	1800	rpm
Emissions
Minimum Rating	145.0	BHP
Compression Ratio
Aspiration
Rotation from Flywheel End
Flywheel and Flywheel Housing
Flywheel Teeth
Displacement	638.0	in³
Oil Change Interval
Ignition, Protection
Air/Fuel Ratio Control
Stroke	6.0	in
Bore	4.8	in
Cooling System	5.25	gal (US)
Lube Oil System - Refill	11.9	gal (US)
Length	60	in
Width	38	in
Height	50	in
Weight - Dry	2090	lb

Standard Equipment

Air Inlet System
Control System
Cooling System
Exhaust System
Flywheels & Flywheel Housings
Fuel System
Ignition System
Lube System
Protection System

Optional Equipment

Charging Alternator
Cooling System
Exhaust System
Guards
Ignition System
Instrumentation
Starting System
