G3408

Caterpillar

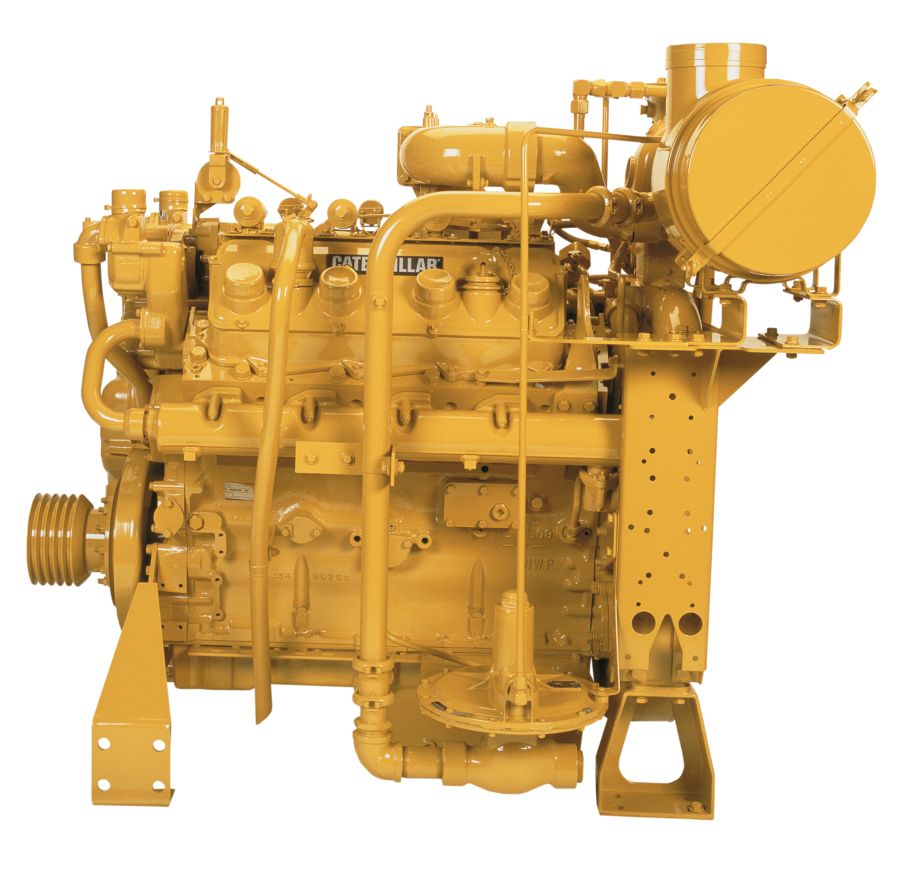

Tough and durable, built on the industry-standard G3400 platform bring maximum uptime and low operating cost to your operation. G3408 engines meet the most demanding continuous duty gas compression applications with virtually no unscheduled downtime.Ideal applications for G3408 engines include gas lift, gas gathering, and wellhead gas compression. Cat G3408 gas engine. Ratings: 190-298 bkW (255-400 bhp) @ 1800 rpm are NSPS site compliant capable with customer-provided air-fuel ratio control and aftertreatment or available for non-regulated areas.

Brochures and Spec Sheets

G3408 Gas Engine Spec Sheet

Gallery

Specifications

Specification	Value	Unit
Maximum Rating	400.0	BHP
Rated Speed	1800	rpm
Emissions
Minimum Rating	255.0	BHP
Compression Ratio
Aspiration
Rotation from Flywheel End
Flywheel and Flywheel Housing
Flywheel Teeth
Displacement	1099	in³
Oil Change Interval
Ignition, Protection
Stroke	6.0	in
Bore	5.4	in
Cooling System	14.5	gal (US)
Lube Oil System - Refill	12.2	gal (US)
Length	68	in
Width	52	in
Height	61	in
Weight - Dry	4500	lb

Standard Equipment

Air Inlet System
Control System
Cooling System
Exhaust System
Flywheel & Flywheel Housing
Fuel System
Ignition System
Instrumentation
Lube System
Mounting System
Protection System
General

Optional Equipment

Air Inlet System
Charging System
Control System
Cooling System
Exhaust System
Fuel System
Ignition System
Instrumentation
Lube System
Mounting System
Power Take-Offs
Protection System
Starting System
