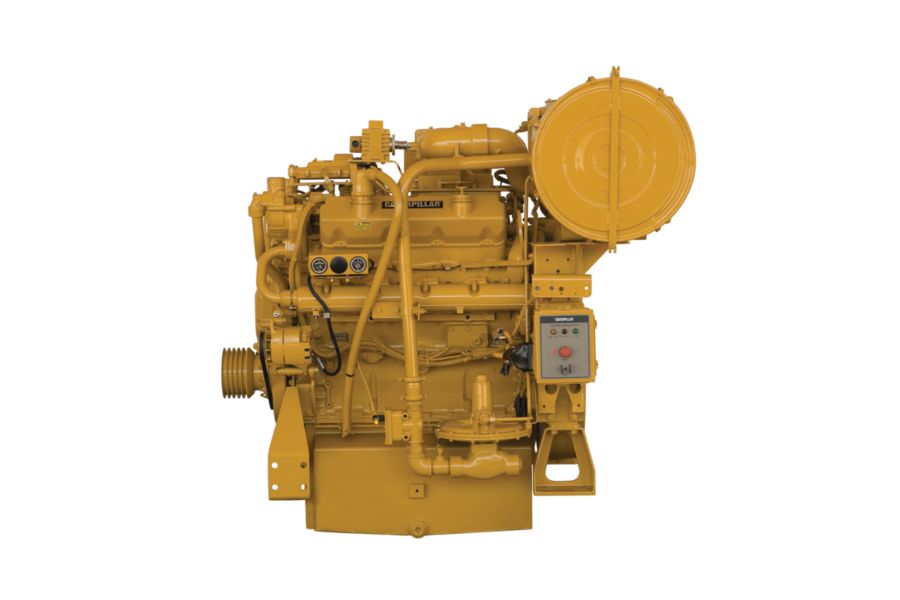

G3408C

Caterpillar

Tough and durable, built on the industry-standard G3400 platform bring maximum uptime and low operating cost to your operation. G3408C engines meet the most demanding continuous duty gas compression applications with virtually no unscheduled downtime.Ideal applications for G3408C engines include gas lift, gas gathering, and wellhead gas compression. Cat G3408C gas engine. Ratings: 317 bkW (425 bhp) @ 1800 rpm are NSPS site compliant capable with customer-provided aftertreatment or available for non-regulated areas.

Brochures and Spec Sheets

G3408C LE Spec Sheet

Gallery

Specifications

Specification	Value	Unit
Maximum Rating	425.0	BHP
Rated Speed	1800	rpm
Emissions
Minimum Rating	425.0	BHP
Compression Ratio
Aspiration
Rotation from Flywheel End
Flywheel and Flywheel Housing
Flywheel Teeth
Oil Change Interval
Ignition, Protection
Stroke	6.0	in
Bore	5.4	in
Displacement	1099.0	in³
Cooling System	14.5	gal (US)
Lube Oil System - Refill	39.0	gal (US)
Length	69.1	in
Width	61.5	in
Height	69.2	in
Weight - Dry	2041	lb

Standard Equipment

Air Inlet System
Control System
Cooling System
Exhaust System
Flywheel & Flywheel Housing
Fuel System
Ignition System
Instrumentation
Lube System
Mounting System
Protection System
General

Optional Equipment

Air Inlet System
Charging System
Cooling System
Exhaust System
Fuel System
Ignition System
Instrumentation
Mounting System
Power Take-offs
Protection System
Starting System
General
