The line of G3520J engines brings versatility, uptime, and low operating cost to your gas compression operation. They deliver the lowest engine-out emissions in the industry without sacrificing performance. Ideal applications for G3520J engines include primary gathering, central gathering, and gas processing plants.
The line of G3520J engines brings versatility, uptime, and low operating cost to your gas compression operation. They deliver the lowest engine-out emissions in the industry without sacrificing performance. Ideal applications for G3520J engines include primary gathering, central gathering, and gas processing plants.

Brochures and Spec Sheets

Gallery

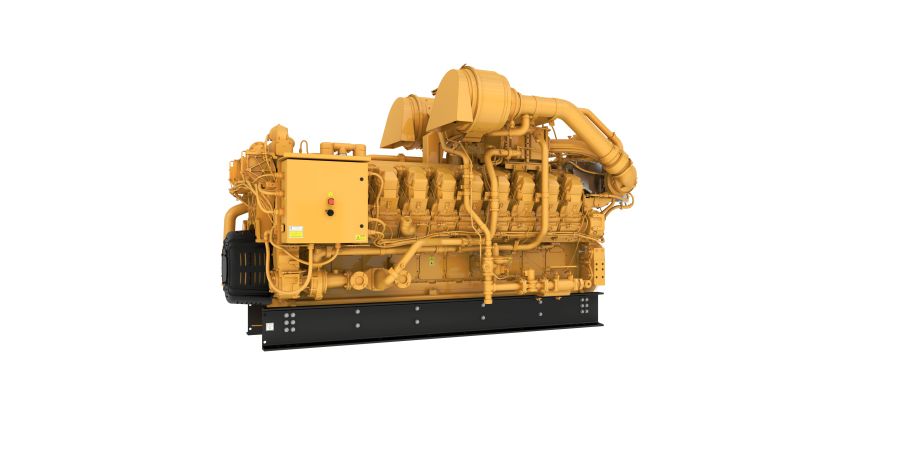

G3520J

Specifications

Specification Value Unit
Maximum Rating 1725 BHP
Rated Speed 1400 rpm
Emissions
Minimum Rating 1680.0 BHP
Displacement 5263 in³
Aspiration
Oil Change Interval
Flywheel Teeth
Lube Oil System - Refill 143 gal (US)
Length 162 in
Width 74 in
Height 93 in
Weight - Dry 23776 lb
Bore 6.7 in
Rotation from Flywheel End
Stroke 7.5 in
Combustion
Governor and Protection

Standard Equipment

  • Air Inlet System
  • Charging System
  • Control System
  • Cooling System
  • Exhaust System
  • Flywheels & Flywheel Housings
  • Fuel System
  • General
  • Lube System
  • Mounting System
  • Power Take-offs
  • Starting System
  • Telematics System

Optional Equipment

  • Exhaust System
  • Fuel System
  • General
  • Lube System
  • Power Take-offs
  • Protection System
  • Starting System
  • Telematics System
