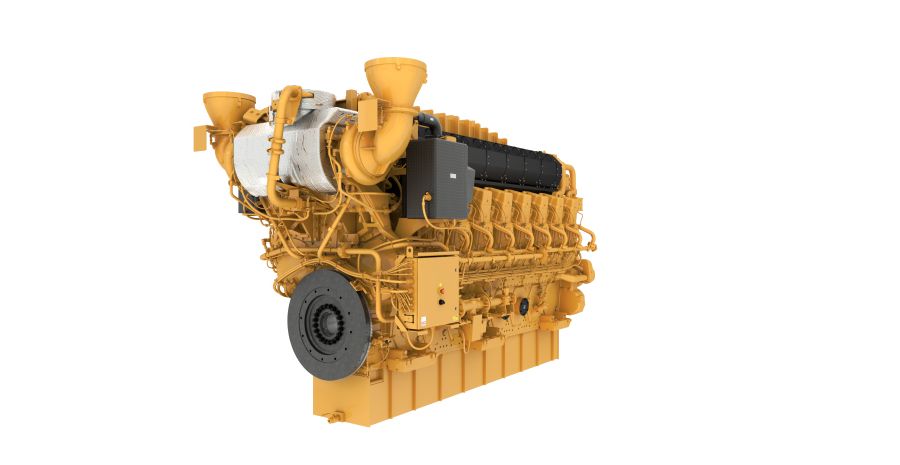

G3616 A4

G3616 A4
Caterpillar
Request a Quote Find a Location
G3600 A4 engines provide a wide range of power options to fit your gas compression application. G3600 A4 engines bring the highest uptime in the industry and long operating intervals between overhauls. Operators that use G3600 A4 engines in their fleet enjoy virtually no unscheduled downtime, the right power for their application, the lowest operating costs, and emissions compliance. Ideal applications for G3600 engines include centralized gathering stations, gas processing, transmissions, and storage applications. Cat G3616 A4 Gen 1 gas engine with standard ratings: 3729 bkW (5000 bhp) @ 1000 rpm and Cat G3616 A4 Gen 2 gas engines with standard ratings: 3729 bkW (5000 bhp) and uprated ratings: 4101 bkW (5500 bhp) @ 1000 rpm. NSPS site compliant capable.
G3600 A4 engines provide a wide range of power options to fit your gas compression application. G3600 A4 engines bring the highest uptime in the industry and long operating intervals between overhaul. Operators that use G3600 A4 engines in their fleet enjoy virtually no unscheduled downtime, the right power for their application, the lowest operating costs, and emissions compliance. Ideal applications for G3600 A4 engines include centralized gathering stations, gas processing, transmissions, and storage applications. Cat G3616 A4 Gen 1 gas engine with ratings: 3729-3990 bkW (5000-5350 bhp) @ 1000 rpm and Cat G3616 A4 Gen 2 gas engines with ratings 4101 bKW (5500 bhp) @ 1000 rpm. NSPS site compliant capable.

Brochures and Spec Sheets

Gallery

G3616 A4

Specifications

Specification Value Unit
Maximum Rating 5500 BHP
Rated Speed 1000 rpm
Emissions
Minimum Rating 5000 BHP
Compression Ratio
Aspiration
Rotation from Flywheel End
Flywheel Teeth
Displacement 20698.0 in³
Oil Change Interval
Ignition, Protection
Stroke 11.8 in
Bore 11.8 in
Cooling System 211.0 gal (US)
Lube Oil System - Refill 351.0 gal (US)
Length 231.38 in
Width 102.28 in
Height 129.05 in
Weight - Dry 70301 lb

Standard Equipment

  • Air Inlet System
  • Cooling System
  • Engine Rating
  • Exhaust System
  • Flywheel and Flywheel Housing
  • Fuel System
  • General
  • Instrumentation
  • Lube System
  • Mounting System
  • Power Take-offs
  • Protection Systems
  • Starting System
  • Telematic System

Optional Equipment

  • Charging System
  • Exhaust System
  • Fuel System
  • General
  • Lube System
  • Mounting System
  • Power Take-offs
  • Telematic System
