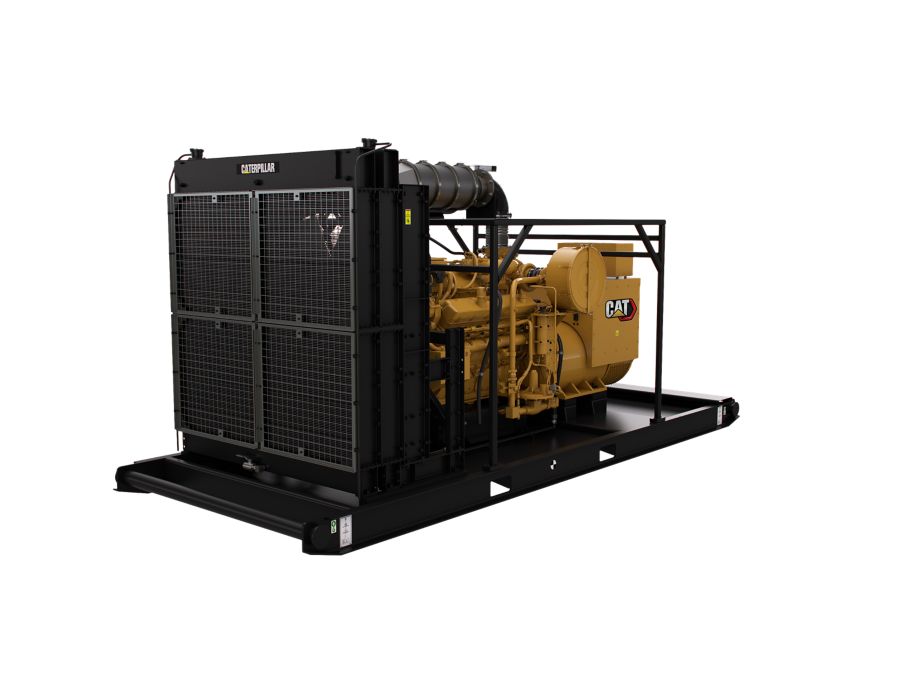

Production of oil and gas in the oilfield can be a challenge when utility power is not available. The Caterpillar product line of oilfield gas generator sets provides the ideal solutions for this challenge. Engines are designed to run on low to no-cost well site gas without sacrifice on performance. These generator sets allow customers to significantly reduce fuel cost and avoid the expense and logistics of diesel fuel deliveries. Plus, they are designed to withstand the harsh conditions in the oilfield and feature a heavy-duty construction ideal for loading and unloading operations. Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. CG137-12 oilfield gas generator set. Rating: 400 ekW (500 kVA) @ 60 Hz (1800 rpm). Standard Configuration meets U.S. EPA Tier II Nonroad Mobile Emissions standards and Available for NSPS emission standards in non-attainment areas via design to order process.
Production of oil and gas in the oilfield can be a challenge when utility power is not available. The Caterpillar product line of oilfield gas generator sets provides the ideal solutions for this challenge. Engines are designed to run on low to no-cost well site gas without sacrifice on performance. These generator sets allow customers to significantly reduce fuel cost and avoid the expense and logistics of diesel fuel deliveries. Plus, they are designed to withstand the harsh conditions in the oilfield and feature a heavy-duty construction ideal for loading and unloading operations. Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. CG137-12 oilfield gas generator set. Rating: 400 ekW (500 kVA) @ 60 Hz (1800 rpm). Configurations available to meet NSPS emission standards in non-attainment areas.
Brochures and Spec Sheets
Gallery
Specifications
| Specification |
Value |
Unit |
| Maximum Rating |
|
|
| Minimum Rating |
|
|
| Emissions/Fuel Strategy |
|
|
| Aspiration |
|
|
| Manifold Type |
|
|
| Bore |
5.39 |
in |
| Stroke |
6.46 |
in |
| Displacement |
1770.0 |
in³ |
| Engine Control and Protection |
|
|
| Generator Set Control |
|
|
| Generator |
|
|
| Frequency - Speed |
|
|
| Fuel |
|
|
| Lube Oil System - Refill |
45.0 |
gal (US) |
| Cooling System - Engine |
15.0 |
gal (US) |
| Length |
230.0 |
in |
| Width |
89.0 |
in |
| Height |
102.3 |
in |
| Weight |
19731.0 |
lb |
Standard Equipment
- Air Inlet System
- Cooling System
- Exhaust System
- Fuel System
- Generator
- Control System
- Lube System
- Mounting System
- Protection System
- General
Optional Equipment
