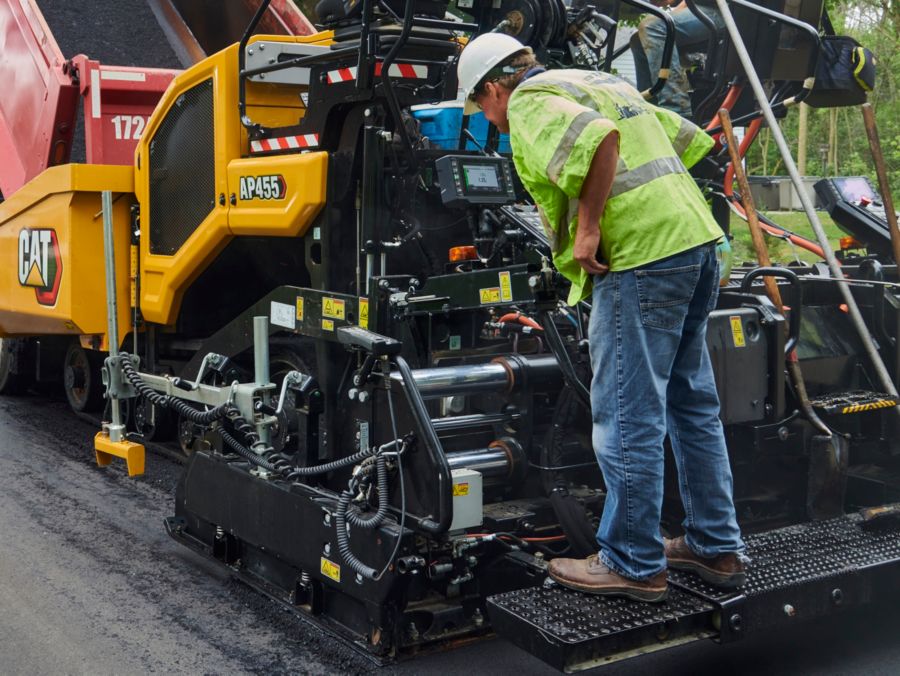

SE47 V Vibratory Screed

SE47 V Vibratory Screed
Cat
Request a Quote Find a Location
The Cat® SE47 V screed with rear-mounted extenders provides stability, easy set-up, and a versatile paving range, making it the perfect match for urban streets, parking lots, rural roads, and many other mid-sized paving applications.
The Cat® SE47 V screed with rear-mounted extenders provides stability, easy set-up, and a versatile paving range, making it the perfect match for urban streets, parking lots, rural roads, and many other mid-sized paving applications.

Brochures and Spec Sheets

Gallery

SE47 V Vibratory Screed SE47 V Vibratory Screed SE47 V Vibratory Screed SE47 V Vibratory Screed SE47 V Vibratory Screed

Specifications

Specification Value Unit
Standard Weight 5850 lb
Standard Paving Range
Maximum Paving Width 20 ft
Maximum Paving Depth 10 in
Heating Time - Maximum Width
Heating Time - Standard Width
Minimum Width - Endgates Attached 102 in
Transport Length - Tractor and Screed 18.1 ft
Crown Range
Vibratory Speed Range
Extender Height Range
Extender Slope Range
Screed Plates Width, Front to Back, Main Screed 12.8 in
Screed Plates Width, Front to Back, Extenders 12.8 in
Length - Front to Back, Endgates Attached 84 in
Length - Front to Back, Endgates Removed 60 in
Height 56 in

Standard Equipment

  • Power Controls
  • Service and Repair
  • Safety
  • Material Delivery
  • Operating Environment

Optional Equipment

  • Technology
  • Safety
  • Material Delivery
