Cat® Screeds can be configured to match any paving application - from highways to city streets to parking lots. Even when set up for maximum paving width, Cat Screeds resist flexing due to unique, robust guide tube design. Select front-mount or rear-mount hydraulic screed extensions, both with optional power-extending main frames.Caterpillar has a full line of vibratory and tamper bar screeds to cover all paving widths while producing high density layers on asphalt as well as other granular materials. User-friendly controls simplify tamper setup and vibrating frequencies to match production rate, paving depth and paving speed. Operators can easily adjust the ramp time for tamping speed.Cat Screeds are simple to set up for consistently smooth transverse joints and minimum screed plate wear. Heavy-duty frames on both 2.5 m (8.0') and 3.0 m (10') screeds allow installation of bolt-on screed extensions for extra-wide paving.
Products
Cat

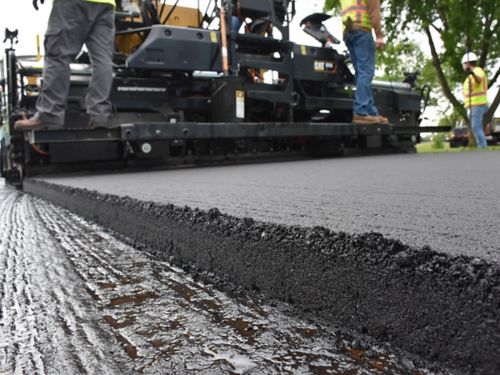

Cat® SDX Screed Plate System
- Paving Range with SE50 V
- 2.55 m - 6.50 m (8' 4" – 21' 4")
- Paving Range with SE60 V
- 3 m to 7.45 m (9' 10" - 24' 5")
- Paving Range with SE60 V XW
- 3 m to 7.95 m (9' 10" - 29' 4")
Cat

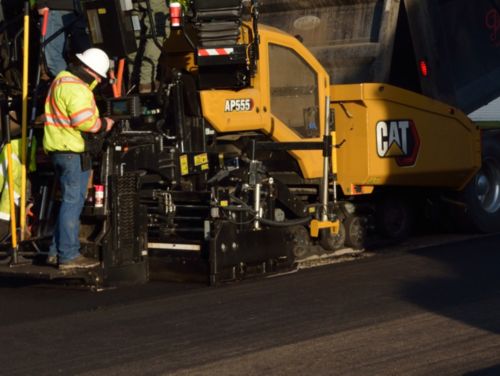

SE47 FM (4B5) Vibratory Screed
- Standard Weight
- 6073 lb / 2755 kg
- Standard Paving Range
- 2.4 - 4.7 m (8' - 15' 6")
- Maximum Paving Width
- 20.5 ft / 6.25 m
Cat

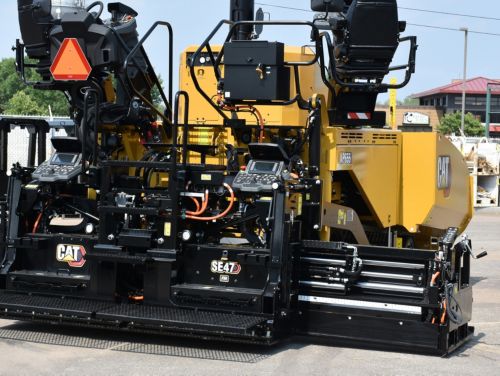

SE47 FM (411) Vibratory Screed
- Standard Weight
- 6200 lb / 2812 kg
- Standard Paving Range
- 2.44 - 4.7 m (8' - 15' 6")
- Maximum Paving Width
- 20.5 ft / 6.25 m
Cat
SE47 V Vibratory Screed
- Standard Weight
- 5850 lb / 2654 kg
- Standard Paving Range
- 2.44 - 4.7 m (8' - 15' 6")
- Maximum Paving Width
- 20 ft / 6.1 m
Caterpillar

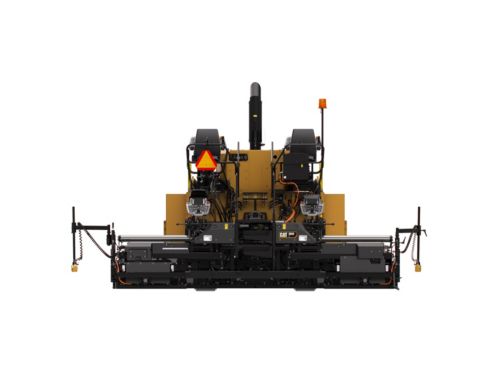

SE50 V Vibratory Screed
- Standard Weight
- 7239 lb / 3284 kg
- Standard Paving Range
- 2.55 - 5.0 m (8' 4" - 16' 4")
- Maximum Paving Width
- 21.3 ft / 6.5 m
Cat

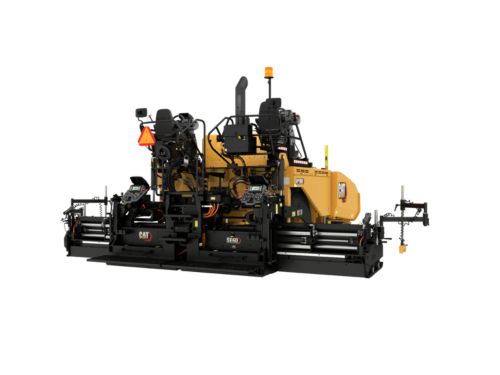

SE60 FM Vibratory Screed
- Standard Weight
- 7800 lb / 3538 kg
- Standard Paving Range
- 3.05 - 5.94 m (10' - 19' 6")
- Maximum Paving Width
- 25.5 ft / 7.77 m
Caterpillar

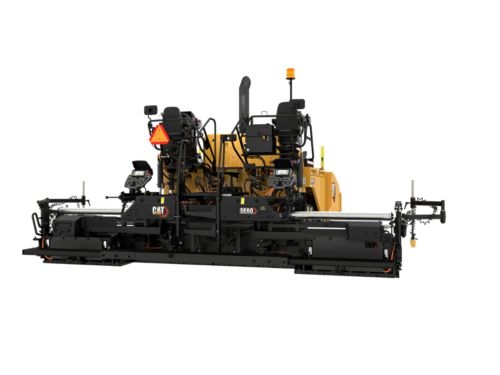

SE60 V Asphalt Screed
- Standard Weight
- 7826 lb / 3550 kg
- Standard Paving Range
- 3.0 - 6.0 m (9' 10" - 19' 6"')
- Maximum Paving Width
- 24.5 ft / 7.45 m
Caterpillar

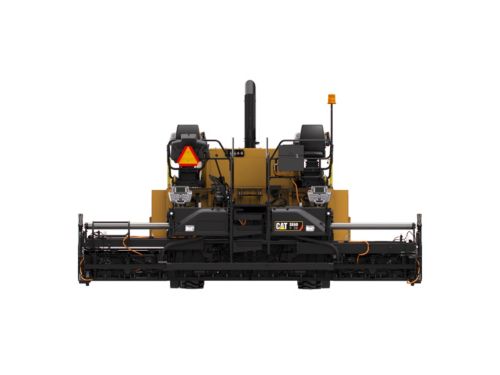

SE60 V XW Vibratory Screed
- Transport Width - Endgates Folded
- 9.85 ft / 3000 mm
- Standard Weight
- 8973 lb / 4070 kg
- Standard Paving Range
- 3.0 to 6.0 m (9' 10"- 19' 6")
