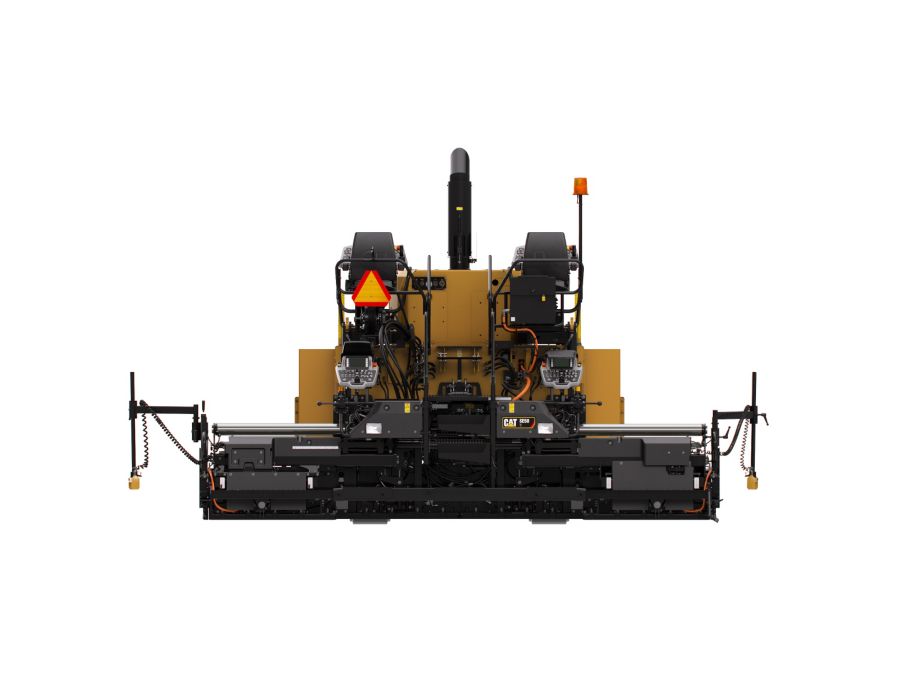

The SE50 V vibratory screed is equipped with rear-mounted extenders and vibratory screed plates. It offers a paving range of 2.55 m - 6.5 m (8' 4" - 21' 4") and excels on highways, parking lots, urban streets and other variable width paving applications.
The SE50 V vibratory screed is equipped with rear-mounted extenders and vibratory screed plates. It offers a paving range of 2.55 m - 6.5 m (8' 4" - 21' 4") and excels on highways, parking lots, urban streets and other variable width paving applications.

Brochures and Spec Sheets

Gallery

SE50 V Vibratory Screed SE50 V Vibratory Screed SE50 V Vibratory Screed

Specifications

Specification Value Unit
Standard Weight 7239 lb
Standard Paving Range
Maximum Paving Width 21.3 ft
Vibratory Speed Range
Crown Range
Transport Width - Endgates Folded 8.3 ft
Screed Plate Width - Front to Back 16 in
Length - Front to Back, Endgates Removed 68 in
Maximum Paving Depth 12 in
Heating Time - Standard Width
Length - Front to Back, Endgates Attached 92 in
Transport Length - Tractor and Screed 22.1 ft
Heating Time - Maximum Width
Extender Height Range
Extender Slope Range
